European Load Sensing Valve Manufacturers

Our Load Sensing Valve Range

We supply eight distinct load sensing valve models, each engineered for a specific vehicle series or control architecture. The table below summarises the available variants and their primary application fit.

Application Fit and Process Considerations

Load sensing valves are installed between the rear axle and the chassis frame. The valve receives a mechanical or pneumatic input proportional to the suspension deflection (axle load) and modulates the brake pressure delivered to the rear brakes. Correct selection depends on:

• Vehicle type: Truck, tractor, rigid, trailer, or bus – each has a distinct load spectrum and suspension geometry.

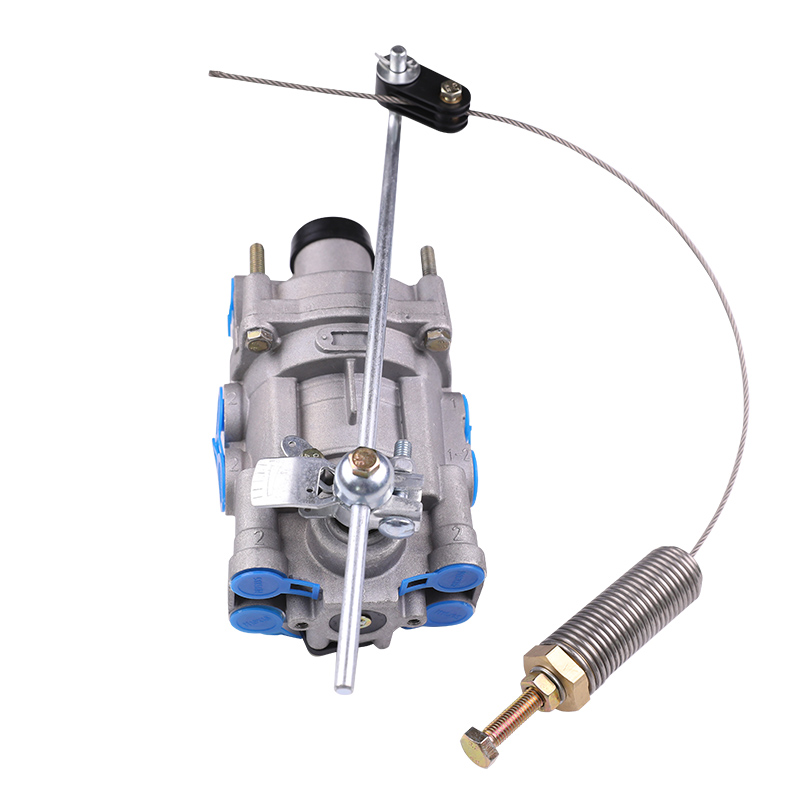

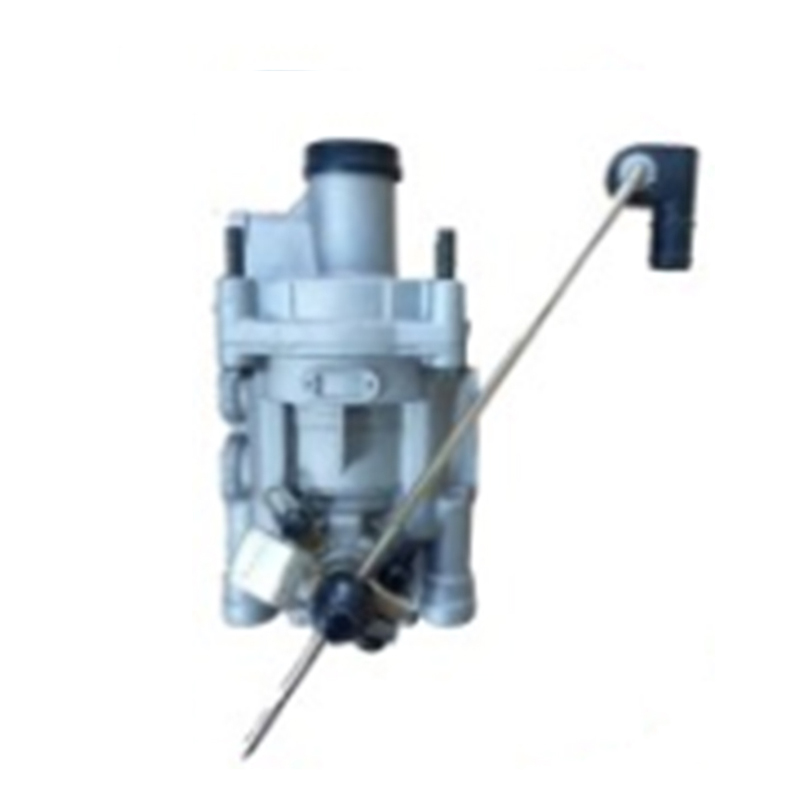

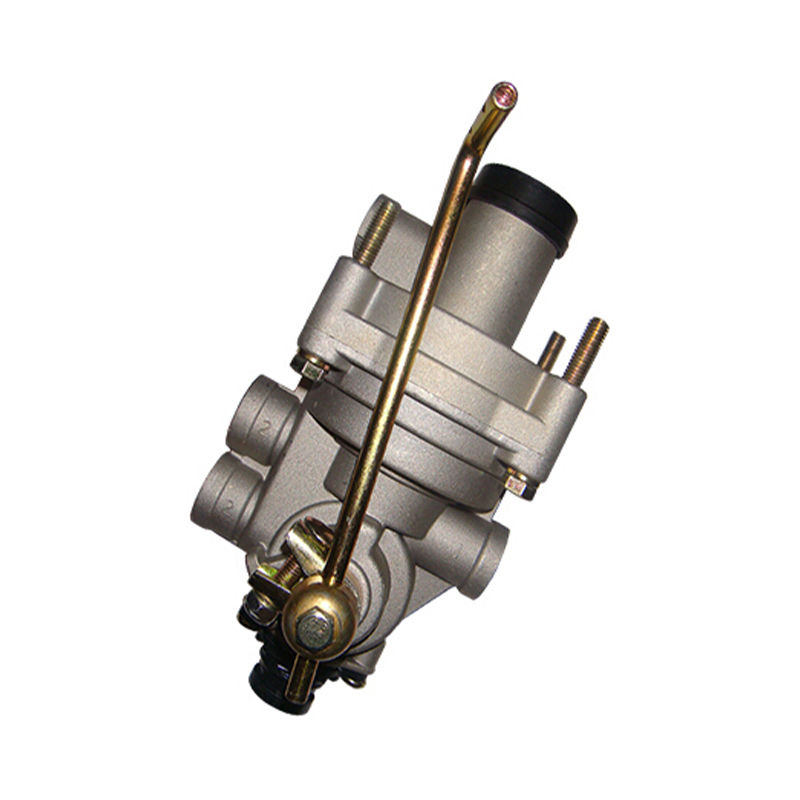

• Actuation method: Mechanical linkage (lever arm) or pneumatic pilot signal. Our mechanically linked valves suit leaf-spring suspensions; pneumatically controlled valves fit air-suspension systems.
• Control pressure range: Standard European systems operate at 3.8 bar control pressure; our universal high-pressure variant covers 3.8–8.5 bar.
• Port configuration: VOSS, ISO, or custom interfaces. We supply VOSS as standard for Mercedes and DAF applications.
• Environmental protection: For off-road or winter-service vehicles, specify our high-protection variant with sealed connectors and anti-corrosion coating.

Critical Specifications and Performance

Every load sensing valve we manufacture is tested for:

Configuration and Automation Integration

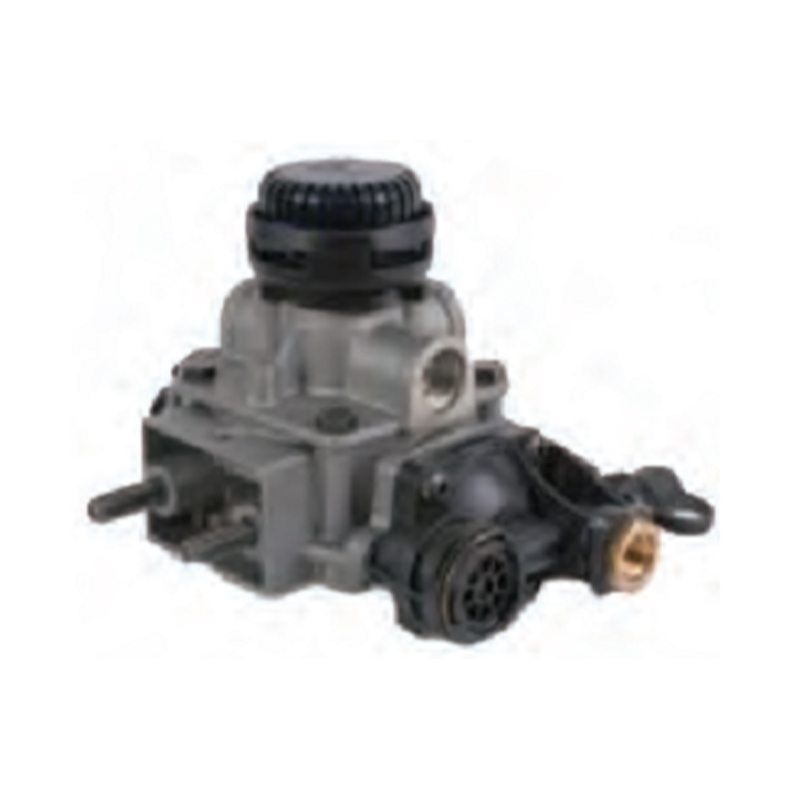

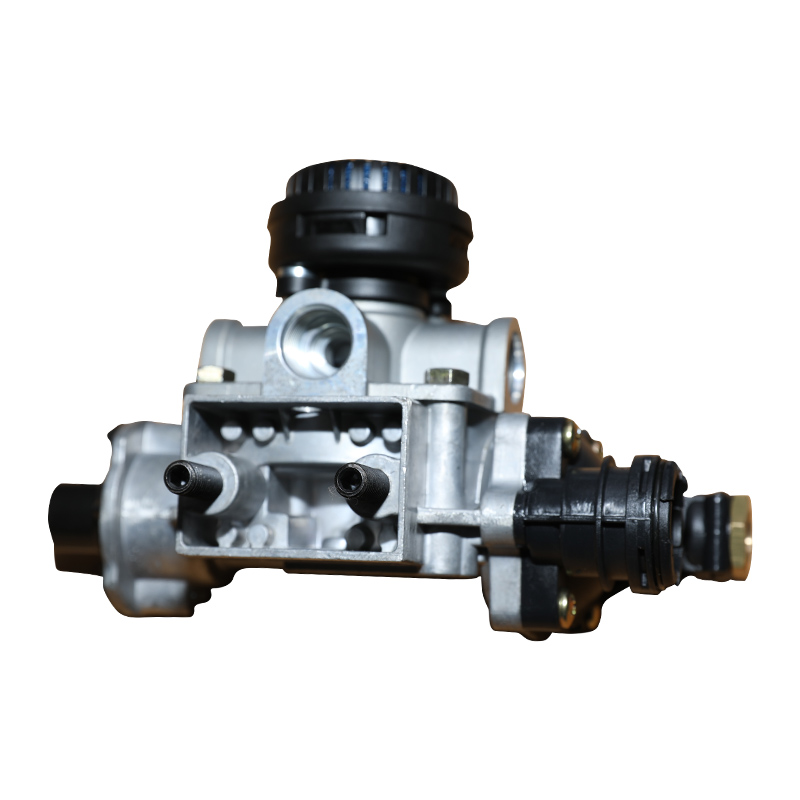

Our load sensing valves can be integrated into pneumatic braking systems with or without electronic control. For vehicles equipped with EBS, the pneumatically controlled intelligent regulating valve accepts a 0–10 V or PWM signal from the ECU, enabling dynamic load-dependent braking. Mechanical valves are supplied with a pre-set lever ratio; we can adjust the ratio during production based on your axle geometry and target deceleration curve.

We also offer custom bracket designs, port thread variants (M16×1.5, M22×1.5, G1/4), and colour-coded identification for aftermarket traceability.

Quality Assurance and Compliance

Our manufacturing facility in Zhuji, Zhejiang, operates under IATF 16949 quality management. Each load sensing valve undergoes 100% functional testing on a dedicated pneumatic test bench, verifying cracking pressure, flow rate, and leakage. We maintain material certifications for all aluminium and steel components. Our valves comply with ECE R13 requirements for braking distribution.

Installation, Maintenance, and Support

Installation is a direct bolt-on replacement for the original valve. We provide a mounting template and torque specifications with each unit. Recommended maintenance includes an annual inspection of the linkage (mechanical type) and a pneumatic leakage test. Spare parts – including diaphragm kits, O-ring sets, and lever assemblies – are available from stock. Our technical team can assist with first-fit validation via sample shipment.

Information We Use to Configure Your Solution

To prepare a precise quotation and configuration, we require the following project data:

• Vehicle make, model, and year (or original part number)
• Suspension type: leaf spring, air suspension, or other
• Required actuation: mechanical (lever length and travel) or pneumatic (pilot pressure range)
• Port type and thread size (VOSS, ISO, or custom)
• Target brake pressure modulation curve (if available)
• Environmental conditions: standard road, off-road, extreme cold, or high humidity
• Annual volume and packaging preference (bulk, branded, or retail-ready)

Frequently Asked Questions
