European Air Dryer – Clean, Dry Air for Reliable Braking

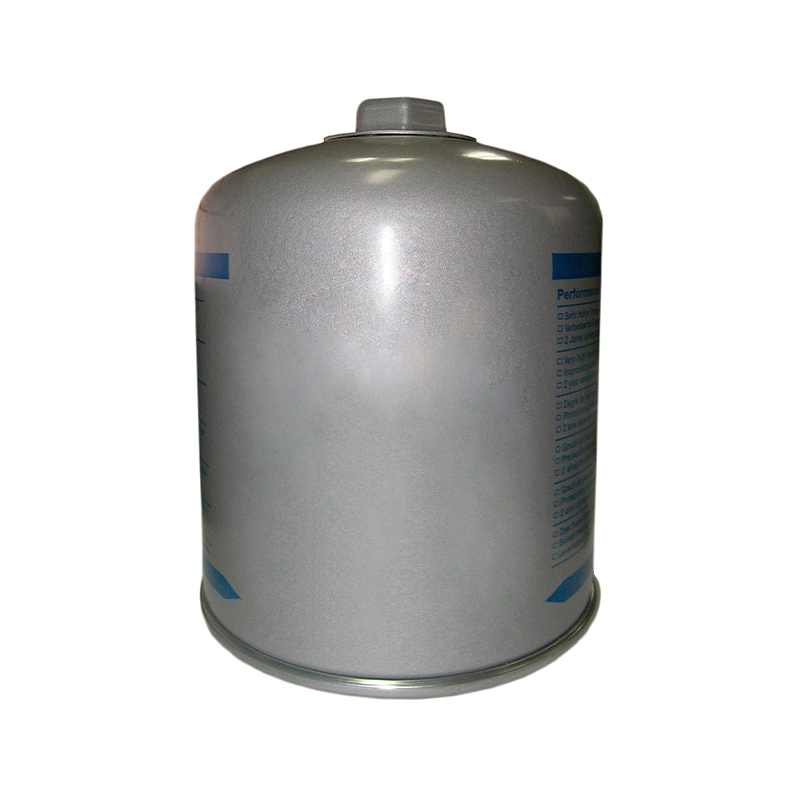

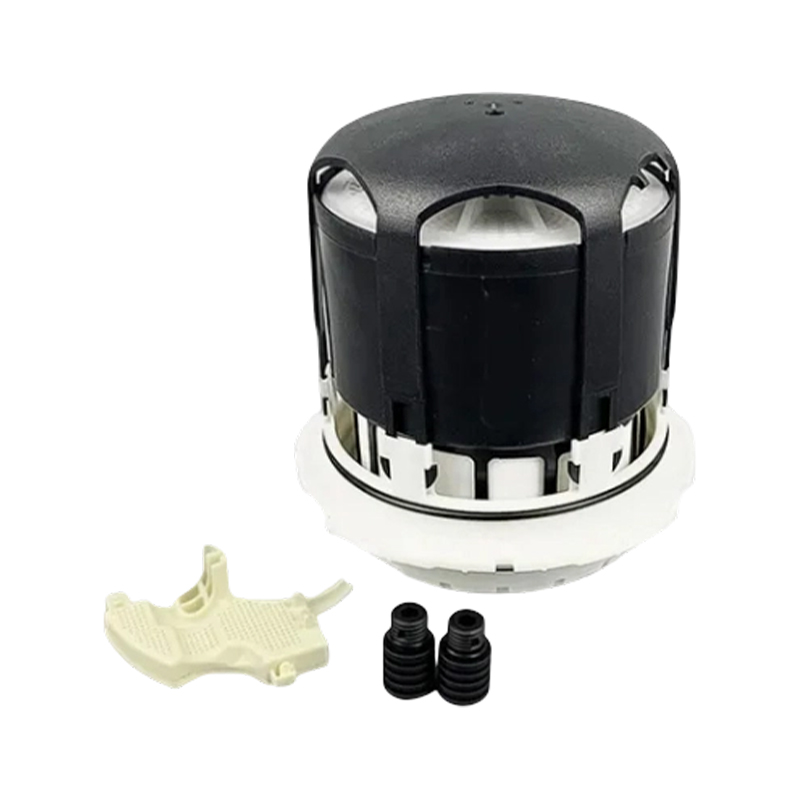

Zhejiang Gongzheng Machinery Co., Ltd. is a professional manufacturer of European air dryers for commercial vehicle air brake systems. Our product range covers spin-on cartridges, integrated assemblies, and advanced air processing units (APUs) designed for heavy-duty trucks, buses, and trailers operating under European standards. We supply the aftermarket and OEM channels with components that remove moisture, oil, and particulate contaminants from compressed air, protecting downstream valves, brake chambers, and ABS/EBS modulators.

As a European Air Dryer manufacturer, we combine in-house machining, automated assembly, and 100% functional testing to deliver consistent performance. Our 30,000 m² factory and IATF-certified quality system support volume production with traceability. Whether you need a replacement cartridge for a Volvo, Scania, MAN, or DAF fleet, or a custom APU for a new vehicle program, we provide engineering support and rapid prototyping.

Our European Air Dryer Range

We offer four main product types, each matched to specific vehicle platforms and system requirements. The table below summarises the available configurations.

Application Fit and Selection Criteria

Correct air dryer selection depends on the compressor output, system volume, operating pressure, and ambient conditions. We consider the following parameters when proposing a solution:

• Vehicle platform – European OEM (Volvo, Scania, MAN, DAF, Mercedes-Benz, Iveco) and model year
• Compressor displacement – Typically 300–600 L/min for heavy-duty trucks
• System pressure – Standard 8.5–12.5 bar; high-pressure variants available
• Electrical supply – 12V or 24V DC; heated or non-heated versions for cold climates
• Port configuration – Inlet/outlet thread types (M22, 1/2" BSP, 3/8" NPT) and number of service ports
• Mounting orientation – Vertical or horizontal; bracket design for chassis or frame rail

Critical Specifications and Performance

Our European air dryers are designed to meet the following performance benchmarks:

• Dew point suppression – Typically 15–25 °C below ambient at rated flow
• Oil removal efficiency – >99.9% for liquid oil and aerosol
• Filtration rating – 5–10 micron particulate; optional coalescing stage
• Purge volume – 15–25% of compressor output for desiccant regeneration
• Heater power – 80–150 W (thermostat-controlled) for freeze protection

Each unit is leak-tested at 1.5× working pressure and functionally validated on a dedicated test bench. We maintain batch records for full traceability.

Quality Assurance and Compliance

Our manufacturing facility operates under an IATF 16949 quality management system. Key quality steps include:

• Incoming material inspection – desiccant grade, housing material, seal compound
• In-process leak testing and torque monitoring
• 100% functional test – pressure drop, purge cycle, heater current draw
• Random sample endurance test – 500,000 cycles or equivalent service life

Products comply with ECE R13 (braking) and relevant EU directives for commercial vehicle components. We provide a Certificate of Conformance with each shipment.

Integration with Pneumatic and Electronic Systems

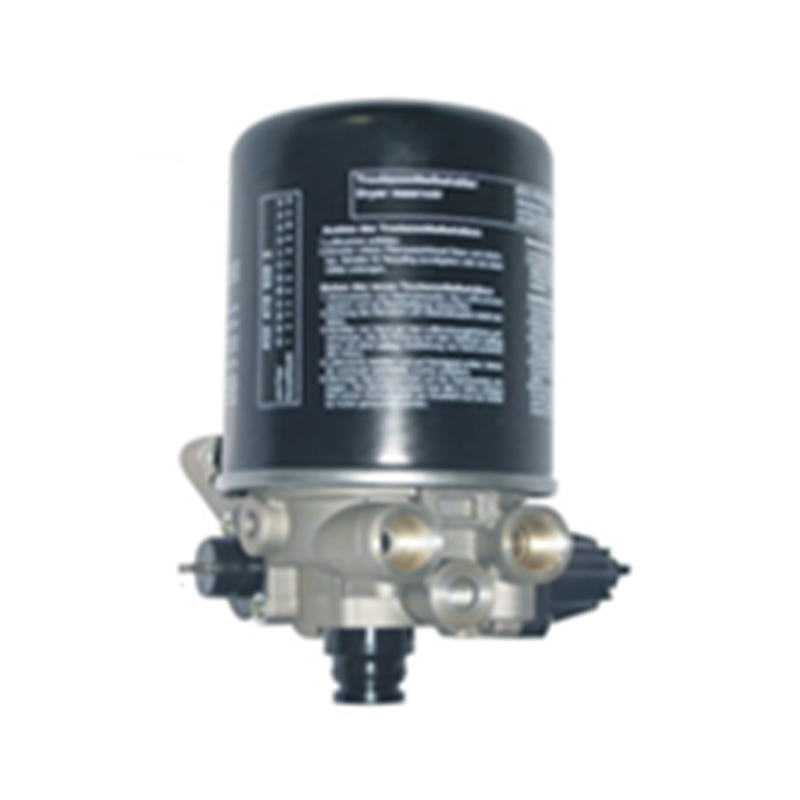

Modern European trucks increasingly integrate the air dryer with electronic pressure management. Our APU modules include ports for pressure sensors and can be configured for CAN bus communication. For fleets transitioning to EBS, we offer dryers with integrated solenoid valves for regeneration control and system diagnostics. We also supply compatible European Unloader Valve and European Circuit Protection Valve components to complete the air treatment system.

Installation, Maintenance, and Service Support

Installation follows standard commercial vehicle practice: mount the dryer on the chassis rail or frame bracket, connect the compressor discharge line, and route the purge exhaust away from intake air. Heated models require a fused power connection. We provide installation drawings and torque specifications with each unit.

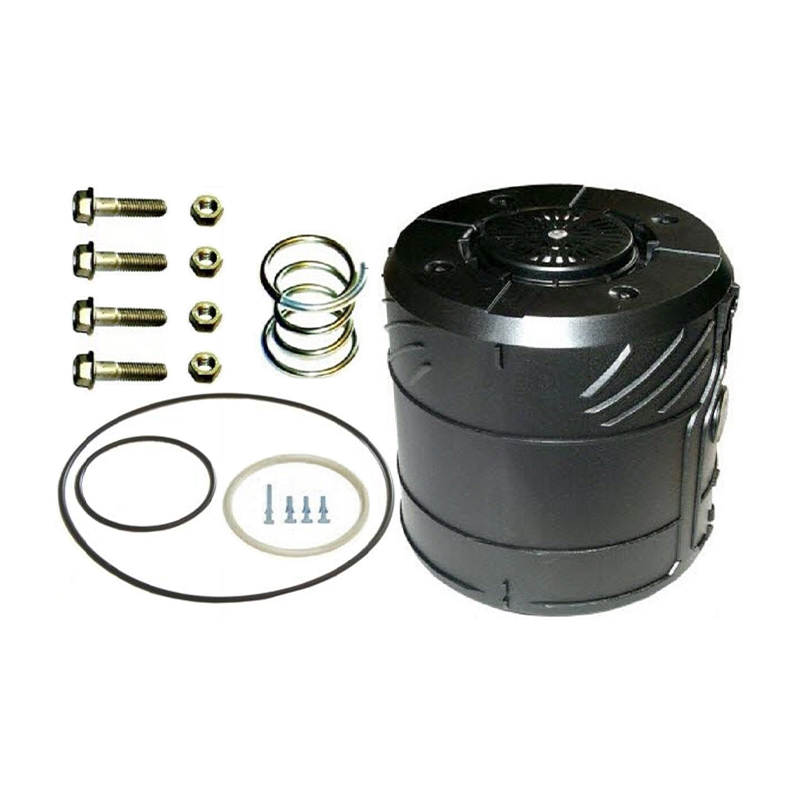

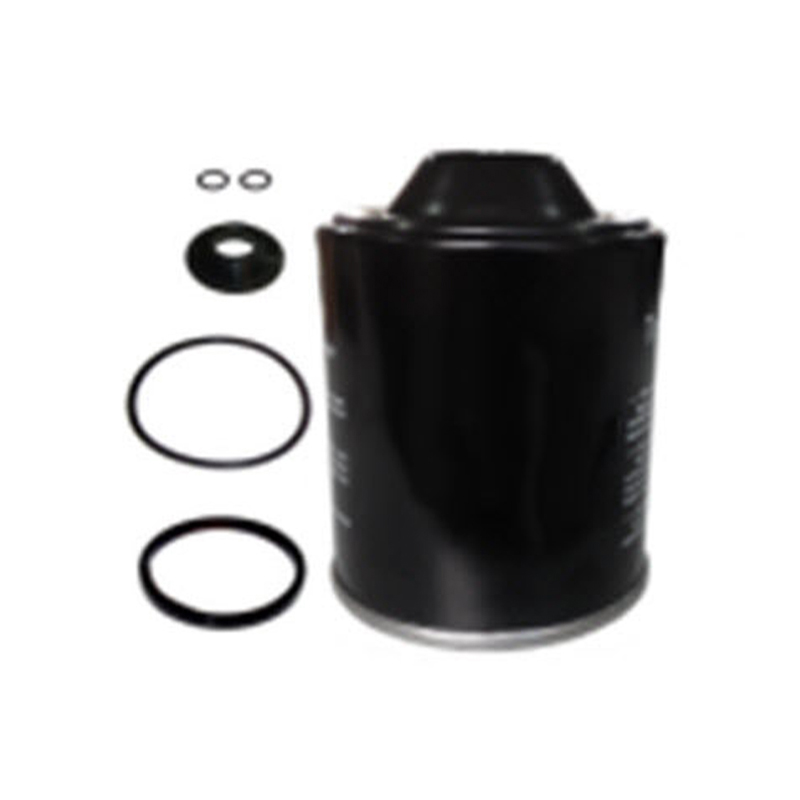

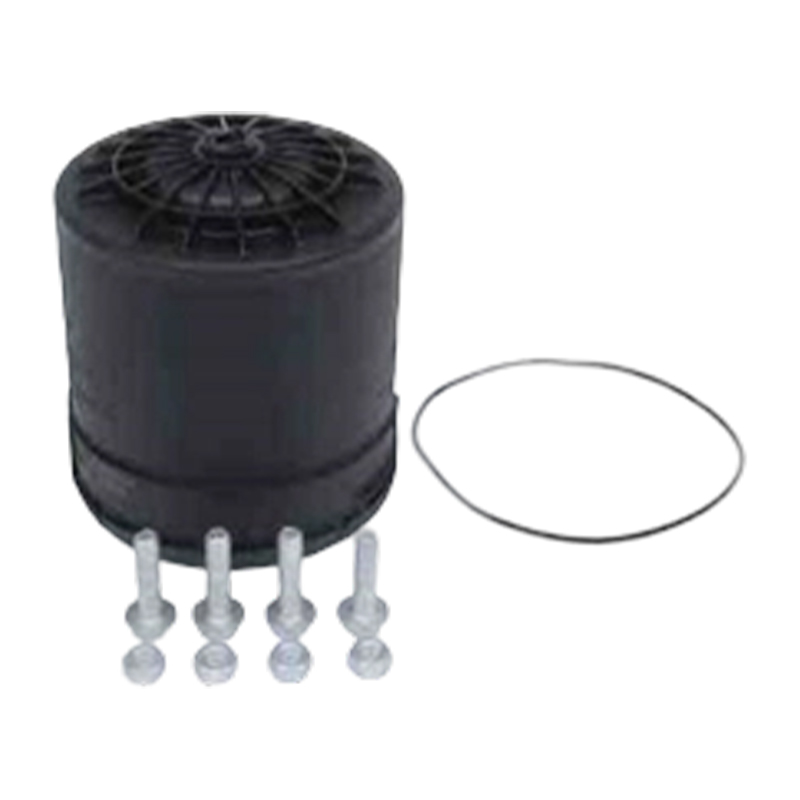

Recommended maintenance includes replacing the desiccant cartridge every 12–24 months or 150,000–300,000 km, depending on operating conditions. Our service kits include the cartridge, O-rings, and a replacement purge orifice. We maintain a standing inventory of over 200,000 units to support urgent orders.

Information We Use to Configure Your Solution

To prepare a precise quotation and product recommendation, we require the following project information:

• Vehicle make, model, and year (or OEM part number of the current air dryer)
• Compressor type and displacement (if known)
• System working pressure and electrical voltage
• Ambient temperature range (for heater selection)
• Desired port configuration and mounting orientation
• Annual volume and delivery schedule
• Any special requirements (e.g., tire inflation port, silencer, sensor integration)

Submit these details through our inquiry form or contact our engineering team directly. We typically respond with a technical datasheet and quotation within 48 hours.
