European Gearbox Valve Manufacturer – Precision Pneumatic Control for Truck Transmissions

Zhejiang Gongzheng Machinery Co., Ltd. is a professional Wholesale Truck Gearbox Valve Manufacturers and supplier of pneumatic control components for European commercial vehicles. Our European gearbox valve range is designed for the air-shift systems of heavy-duty trucks, buses, and trailers from leading OEM platforms including SCANIA, VOLVO, MERCEDES-BENZ, ZF, and RVI. These valves manage the compressed air flow that engages and disengages transmission gears, ensuring precise, reliable shifting under demanding operating conditions.

We manufacture each valve using corrosion-resistant materials, precision-machined spools, and sealed diaphragms that meet the pressure and durability requirements of European air brake and transmission systems. Our factory integrates automated assembly lines and in-process leak testing to deliver consistent product quality. Whether you need a direct replacement for a specific OEM part number or a custom configuration for a fleet application, we provide engineering support and production flexibility.

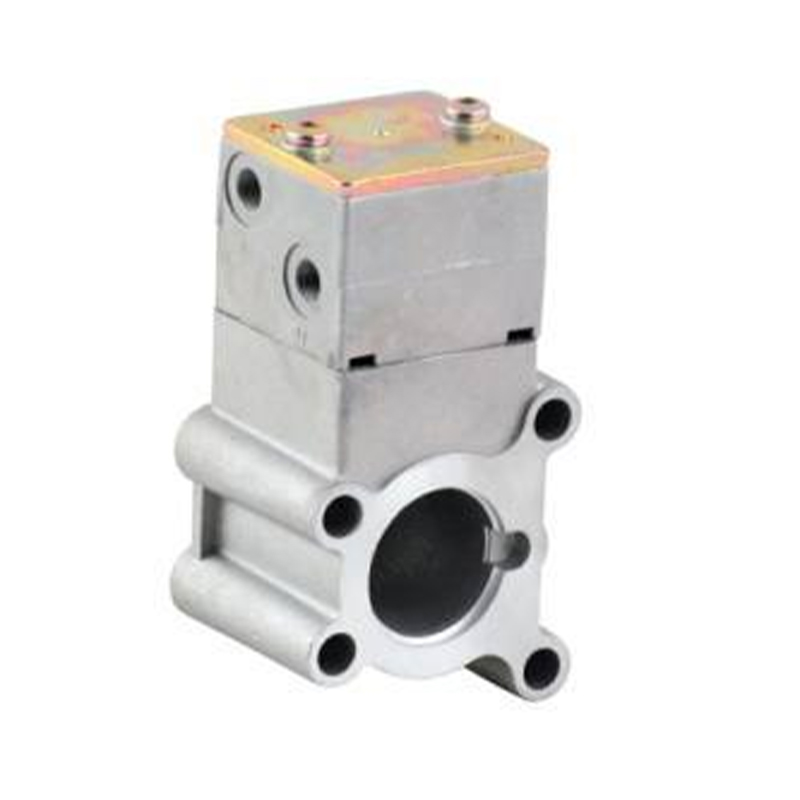

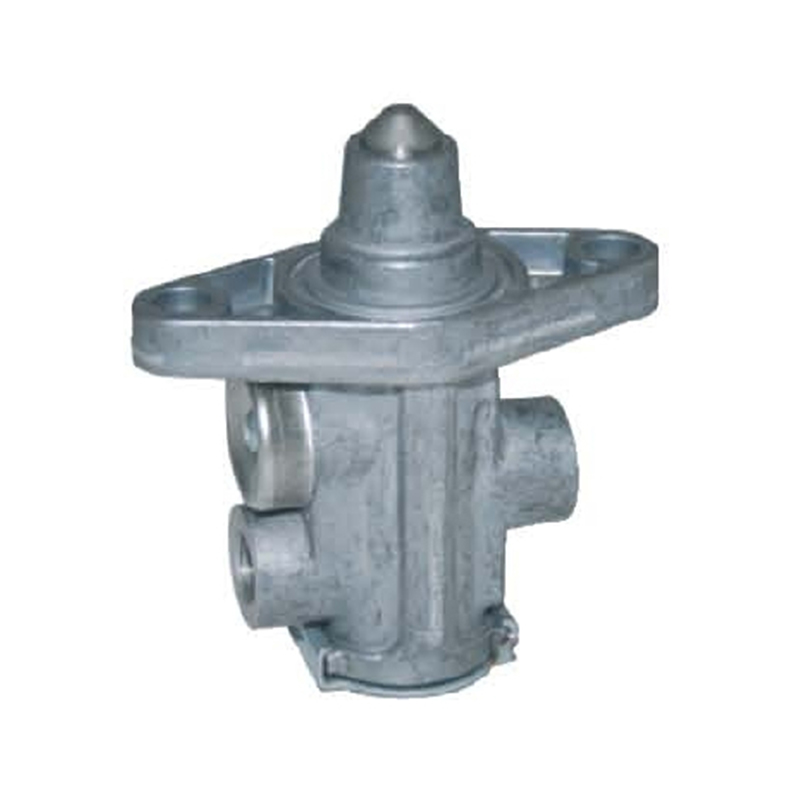

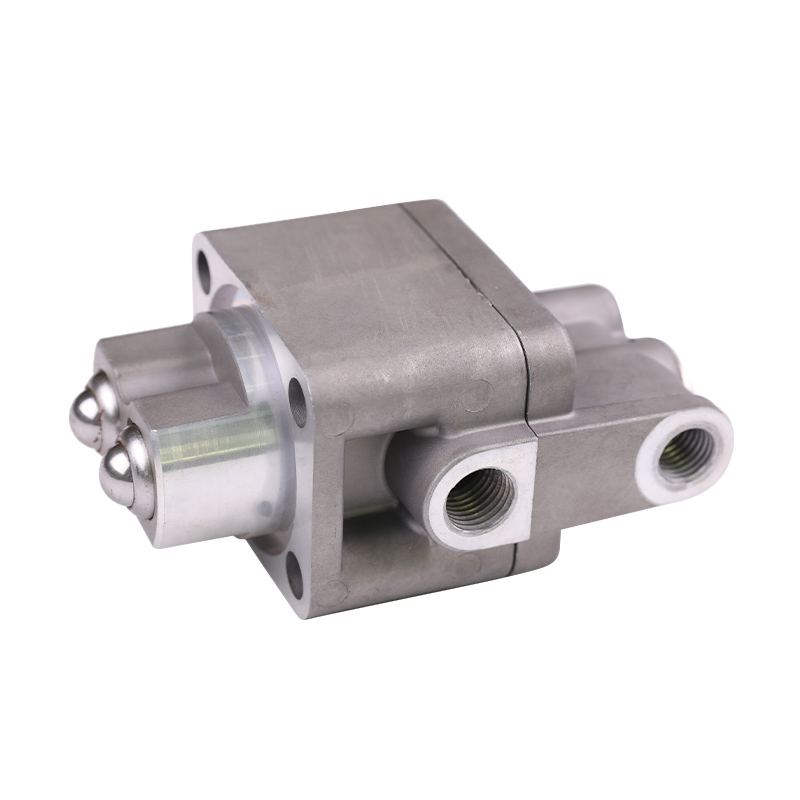

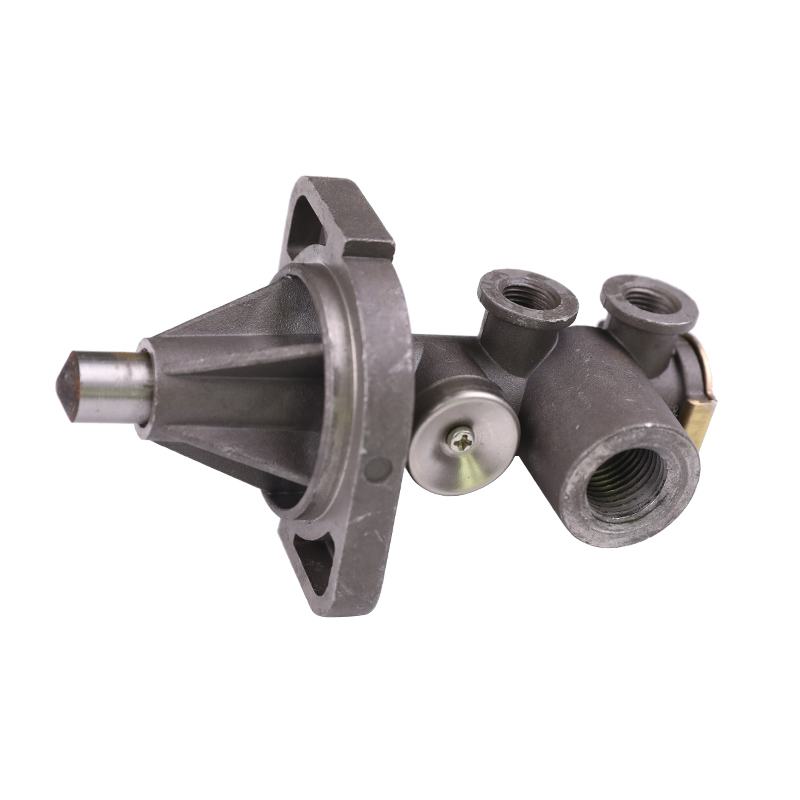

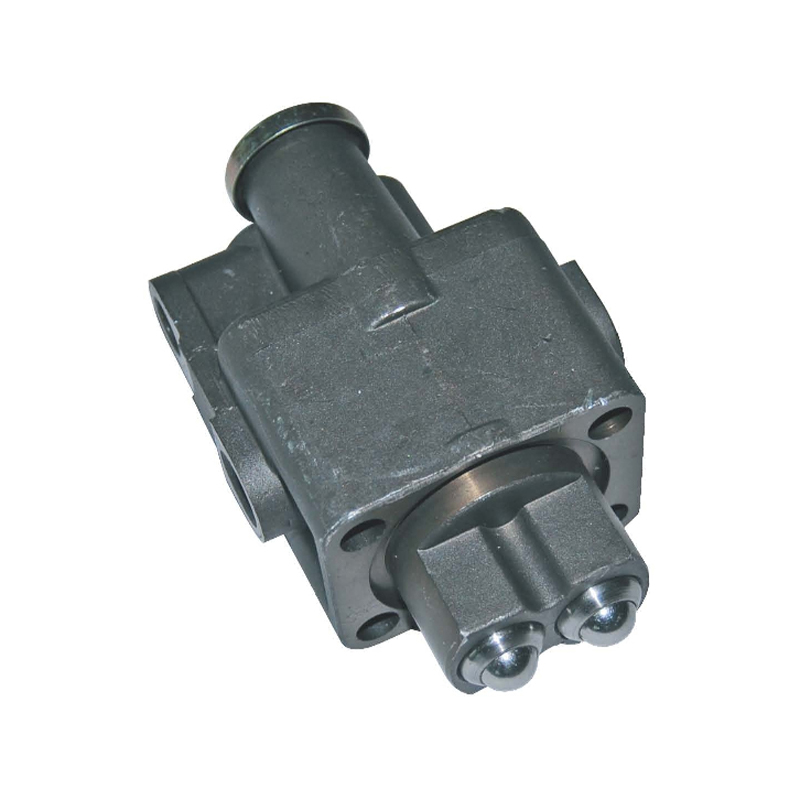

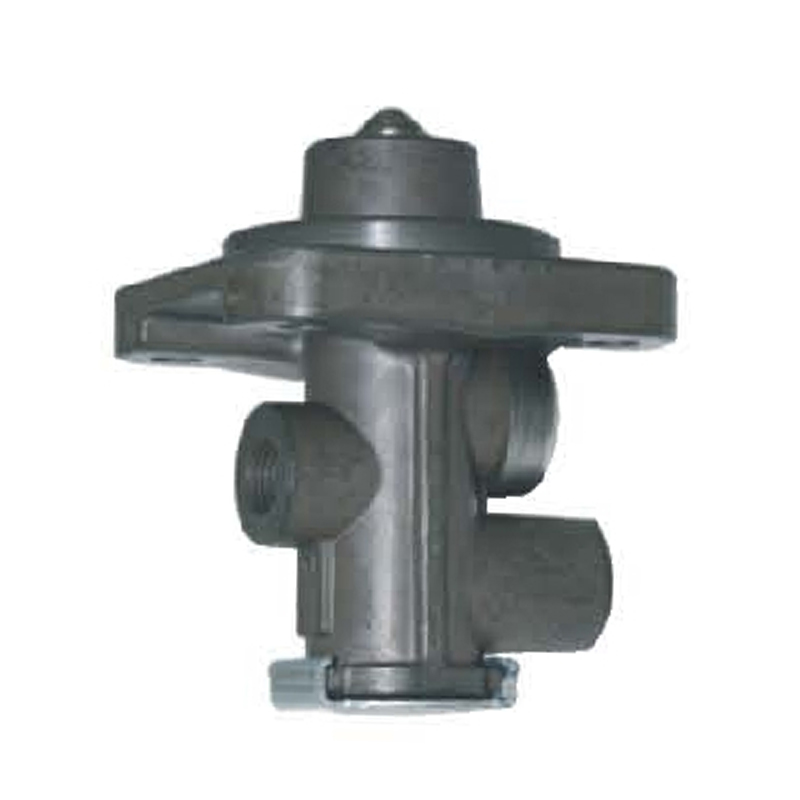

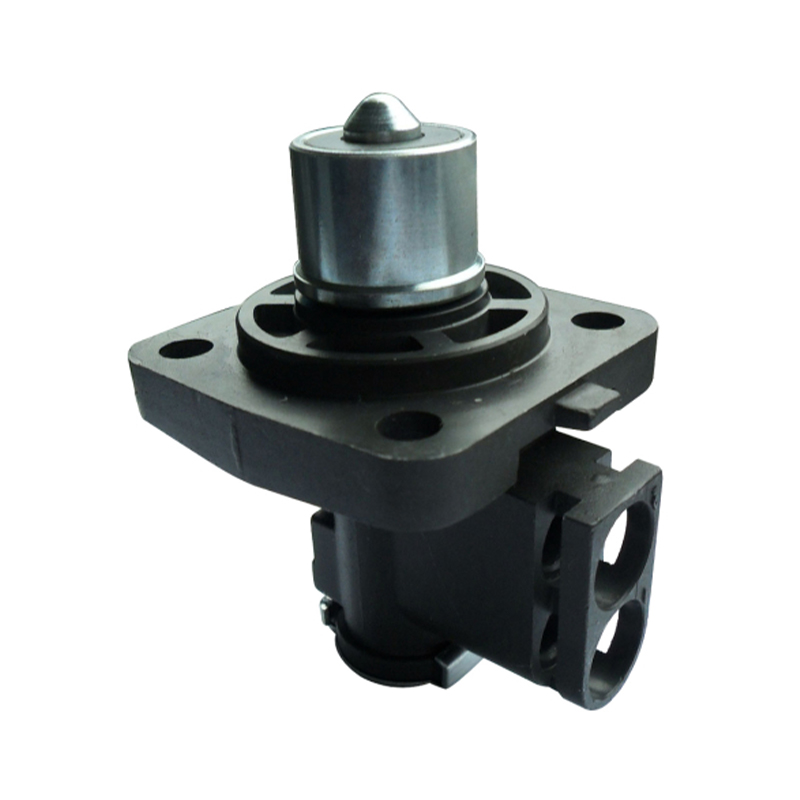

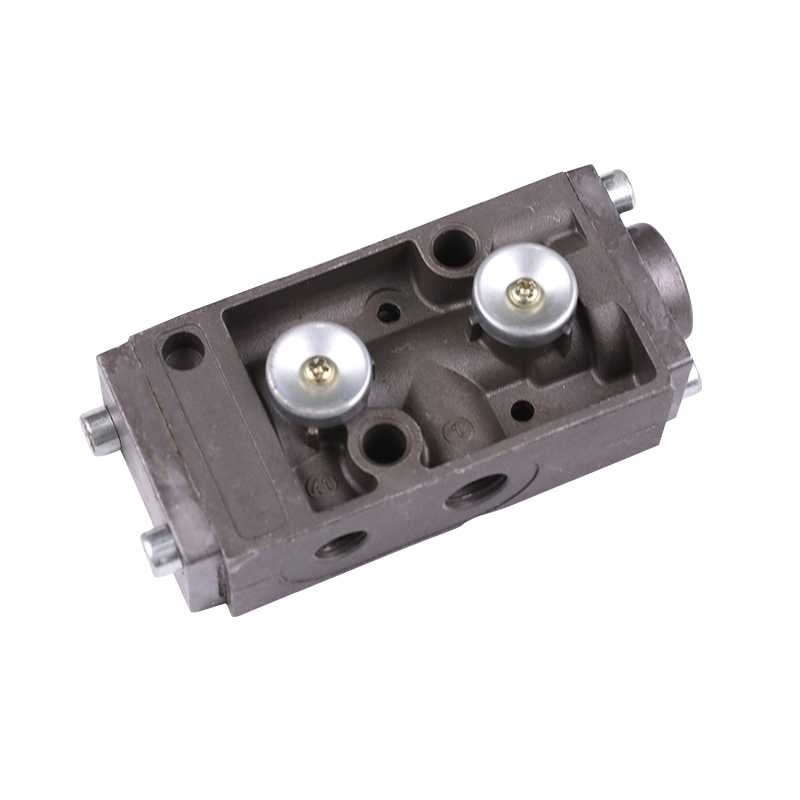

Product Range – European Gearbox Valve Variants

Our European gearbox valve category includes multiple series matched to different transmission models and air interface standards. The table below summarises the available variants and their primary application fit.

Application Fit – Pneumatic Transmission Control

European gearbox valves are installed in the pneumatic circuit between the transmission control unit (TCU) or gearshift lever and the clutch/gearbox actuators. They convert low-pressure pilot signals into high-flow air outputs that move shift forks or synchronisers. Our valves are suitable for:

• Automated manual transmissions (AMT) – ZF AS Tronic, VOLVO I-Shift, SCANIA Opticruise
• Conventional manual gearboxes with pneumatic assist – Eaton Fuller, MERCEDES G-series
• Retrofit and aftermarket replacement – Direct fit for OEM part numbers without wiring modifications

Critical Specifications and Performance

Each valve is engineered to operate reliably within the following parameters:

• Operating pressure: 6 – 12 bar (87 – 174 psi)
• Flow rate (CV): 0.8 – 1.5 depending on port size
• Response time: < 50 ms at nominal pressure
• Temperature range: -40°C to +85°C
• Seal material: NBR / FKM (Viton) for oil and fuel resistance
• Body material: Anodised aluminium or zinc alloy with corrosion-resistant coating

We validate every production batch with leak testing at 1.5× working pressure and functional cycling tests to confirm repeatability. Our quality management system is certified to IATF 16949, covering design, manufacturing, and aftermarket service.

Configuration and Customisation Options

We offer standard catalogue models for immediate supply and custom configurations for volume projects. Customisation options include:

• Port thread types (metric, BSP, NPT)
• Integrated solenoid voltage (12 VDC or 24 VDC)
• Connector style (DIN, Deutsch, AMP, or flying leads)
• Pilot pressure range adjustment
• Marking and packaging per customer specification

Our R&D team can develop a valve based on your sample, drawing, or performance target. We provide rapid prototyping and sample approval before series production.

Quality Assurance and Testing

Every European gearbox valve leaving our factory undergoes:

• 100% functional test on a dedicated pneumatic test bench
• Internal and external leak test (bubble method or mass flow)
• Visual inspection of body, seals, and connectors
• Sample-based endurance test (1 million cycles) for new tooling

We maintain traceability from raw material lot to finished product serial number. Test records are available upon request for each shipment.

Installation, Maintenance, and Service Life

Installation is straightforward: mount the valve using the existing bracket holes, connect the air lines with the correct torque (typically 15–20 Nm for M12 fittings), and plug in the electrical connector if applicable. No calibration is required. We recommend replacing the valve if internal leakage exceeds 10 cm³/min at 8 bar or if shifting becomes sluggish. Spare parts such as seal kits and solenoid coils are available for field repair, reducing downtime.

Information We Use to Configure Your Solution

To prepare a precise quotation and recommend the correct valve, we need the following project information:

Submit these details through our inquiry form or contact our sales engineering team directly. We typically respond with a technical datasheet and commercial offer within two working days.

Frequently Asked Questions

What is the difference between a gearbox valve and a foot brake valve?

A gearbox valve controls air to the transmission for gear shifting, while a foot brake valve modulates air to the brake chambers for stopping. They operate in separate pneumatic circuits and have different port configurations.

Can I use a VOLVO gearbox valve on a SCANIA truck?

Not directly – the mounting bracket, port threads, and pilot pressure settings differ. We recommend selecting the valve series matched to your vehicle platform. Our multi-platform series covers some cross-compatibility with adapter kits.

Do you offer valves with integrated solenoids?

Yes, several models in our MERCEDES and ZF series include an integrated 12V or 24V solenoid for direct TCU control. We also supply pilot-operated versions for pneumatic-only systems.

What is the typical lead time for standard gearbox valves?

Standard models are shipped within 7–15 working days from our factory in Zhejiang, China. Custom configurations require 20–30 working days after sample approval.

How do I confirm the correct valve for my fleet?

Provide the vehicle VIN, transmission model, and a photo of the old valve (including any stamped numbers). Our team cross-references this data against our OEM database to confirm the exact match.

Do you provide warranty on European gearbox valves?

Yes, we offer a standard warranty against manufacturing defects. The warranty period is defined in our commercial terms and can be extended for volume contracts.
