American Levelling Valve Manufacturer – Precision Height Control for Heavy-Duty Air Suspension

Zhejiang Gongzheng Machinery Co., Ltd. is a professional Wholesale American Levelling Valve Manufacturers and factory, specializing in the design and production of air suspension levelling valves for American commercial vehicles. Our product range covers mechanical, load-sensing, and high-flow dynamic height control valves, engineered to maintain consistent chassis height under varying load conditions. These valves are critical for ride quality, tire wear, and braking stability in Class 8 trucks, heavy-duty trailers, and buses.

With a 30,000 m² factory, in-house R&D team, and IATF-certified quality system, we deliver levelling valves that meet OEM specifications and aftermarket durability requirements. Our valves are used by fleet operators, trailer builders, and truck manufacturers who demand reliable height modulation and long service life.

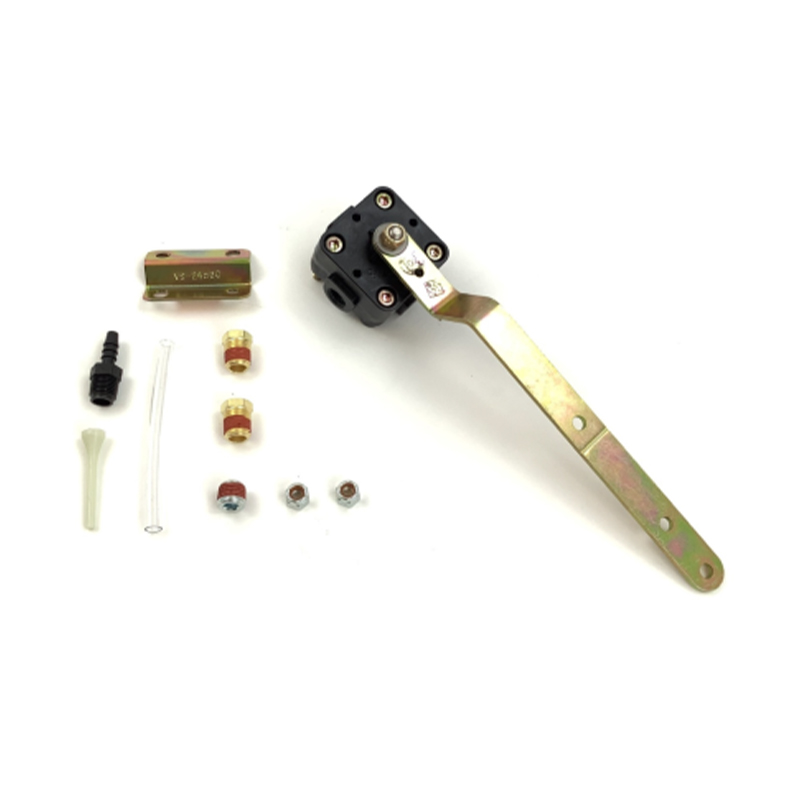

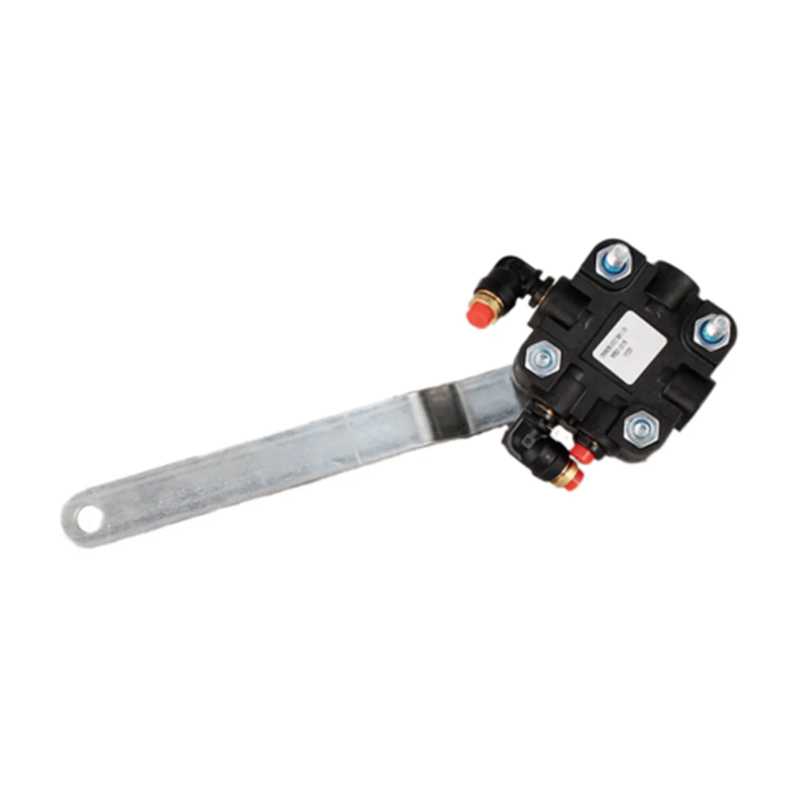

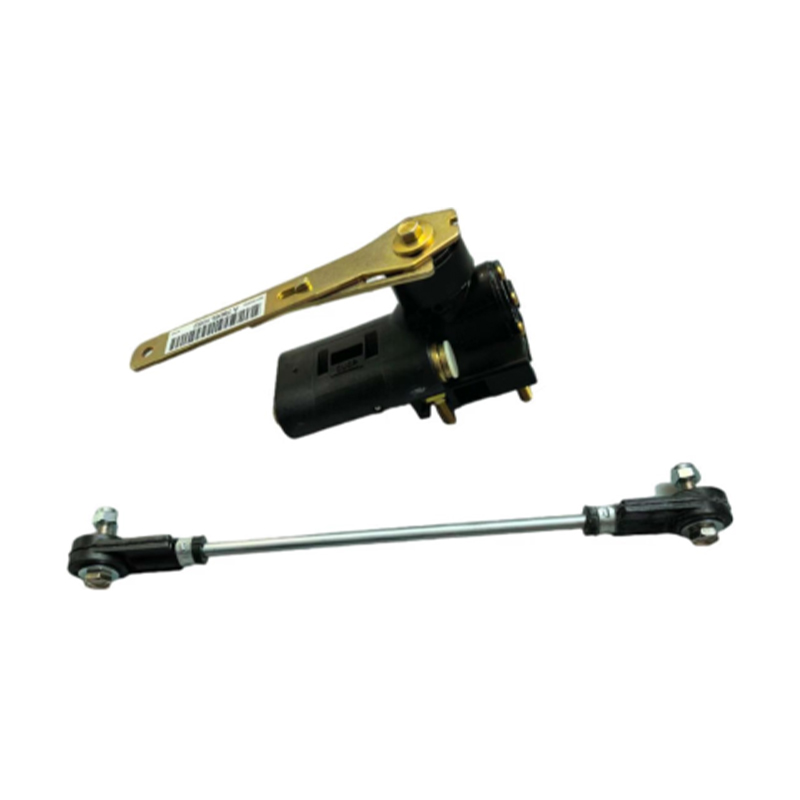

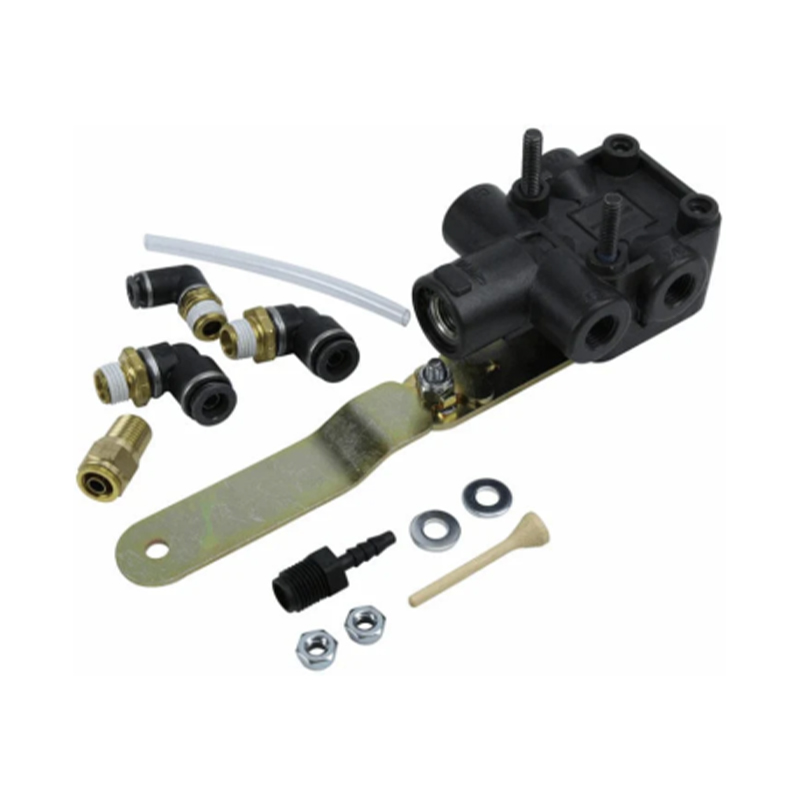

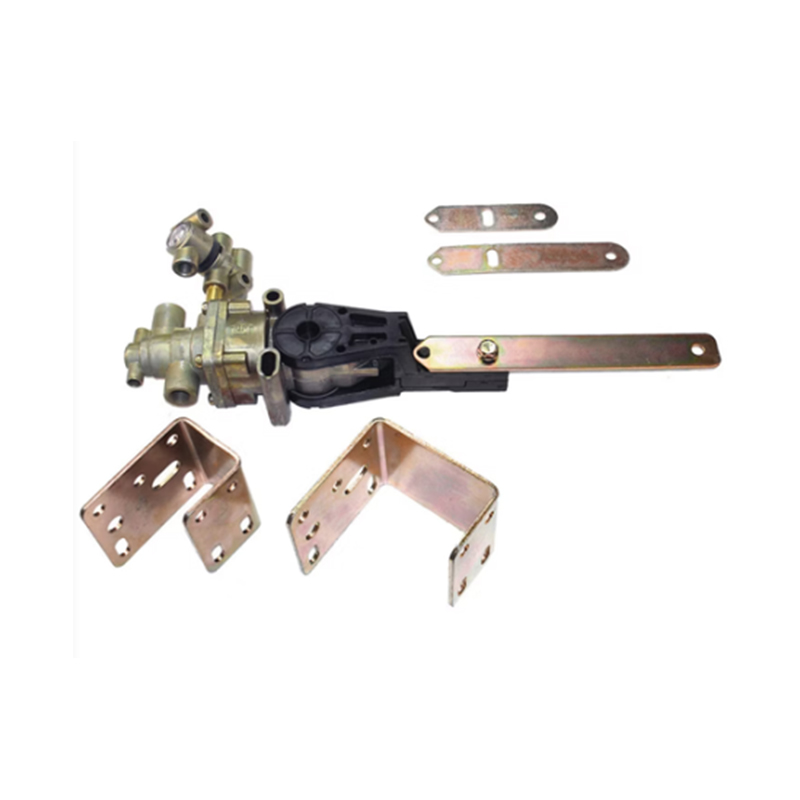

Our American Levelling Valve Range

We supply multiple series of levelling valves to match different suspension architectures, load ranges, and control preferences. Each series is designed for a specific application fit.

Application Fit and Process Considerations

American levelling valves are typically installed between the axle and chassis frame, connected via a mechanical link or air pilot line. The valve modulates air pressure to the suspension air springs to maintain a preset ride height. Key application factors include:

• Vehicle type: Truck, tractor, trailer, or bus – each has different mounting geometry and load range.
• Suspension type: Four-bag, two-bag, or multi-axle configurations require different flow and damping characteristics.
• Operating environment: Off-road, highway, or mixed use affects material selection (e.g., corrosion protection, temperature range).
• Control interface: Mechanical linkage, pneumatic pilot, or electronic (PWM/analog) signal.

Critical Specifications and Performance

Our levelling valves are designed to meet the following typical performance parameters. Actual values depend on the specific model and configuration.

• Operating pressure: 8–12 bar (120–175 psi)
• Flow capacity: Up to 1500 L/min at 6 bar (for high-flow series)
• Neutral zone accuracy: ±1 mm at the linkage point
• Temperature range: –40°C to +80°C
• Port sizes: 1/4" NPT, 3/8" NPT, or custom

Configuration Options and Customization

We offer several configuration choices to match your vehicle design:

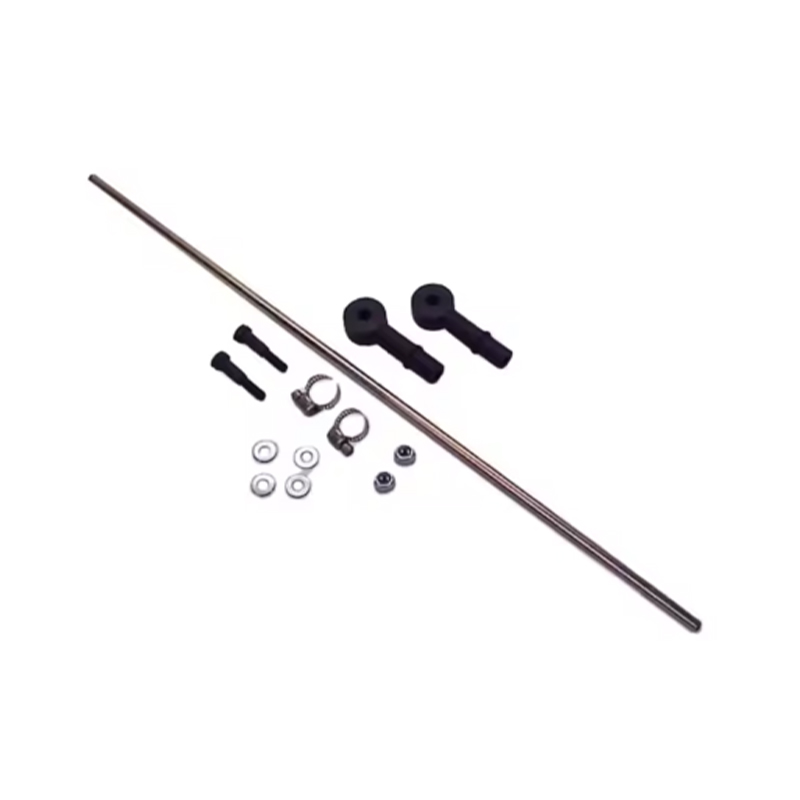

• Linkage type: Standard rod, adjustable rod, or cable-operated
• Valve body material: Aluminum alloy (lightweight) or zinc-plated steel (heavy-duty)
• Port orientation: Inline, right-angle, or manifold mount
• Integrated features: Damping orifice, check valve, or pressure relief

For OEM projects, we can develop custom mounting brackets, linkage lengths, and port configurations based on your CAD data or sample parts.

Quality Assurance and Testing

Every levelling valve undergoes functional testing before shipment. Our quality system is IATF 16949 certified, and we perform:

• Leak testing at maximum operating pressure
• Flow and response time measurement
• Cycle life testing (typically >1 million cycles)
• Environmental chamber testing (thermal shock, humidity, salt spray)

Information We Use to Configure Your Solution

To prepare an accurate quotation and configuration, we need the following project information:

• Vehicle make, model, and year (or suspension layout drawing)
• Desired ride height and allowable tolerance
• Maximum axle load and air spring volume
• Preferred port size and type (NPT, BSP, etc.)
• Linkage type and mounting space constraints
• Environmental requirements (temperature, corrosion, off-road)
• Target price point and annual volume

Installation, Maintenance, and Support

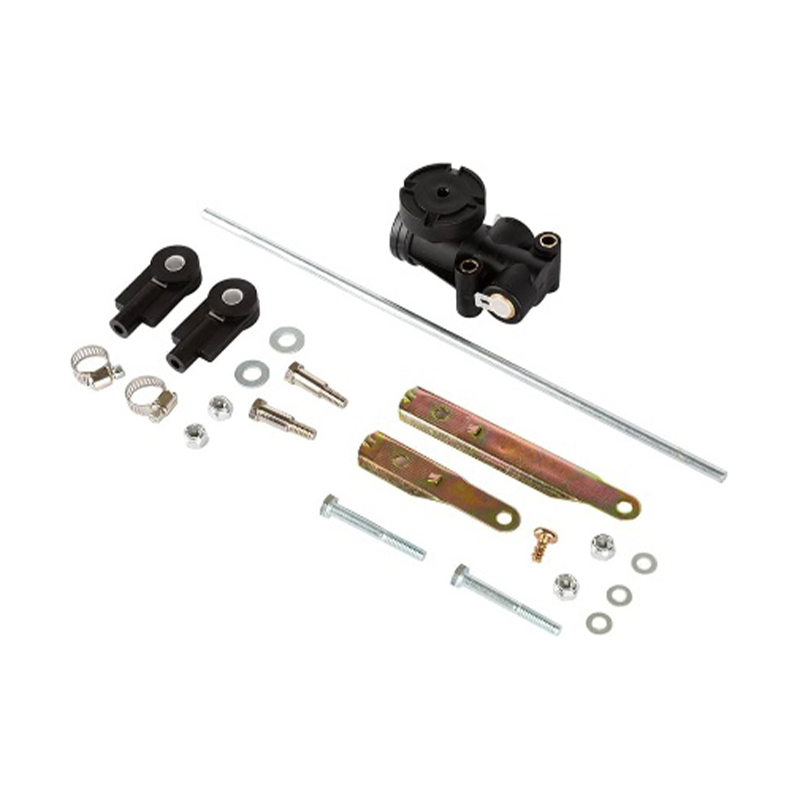

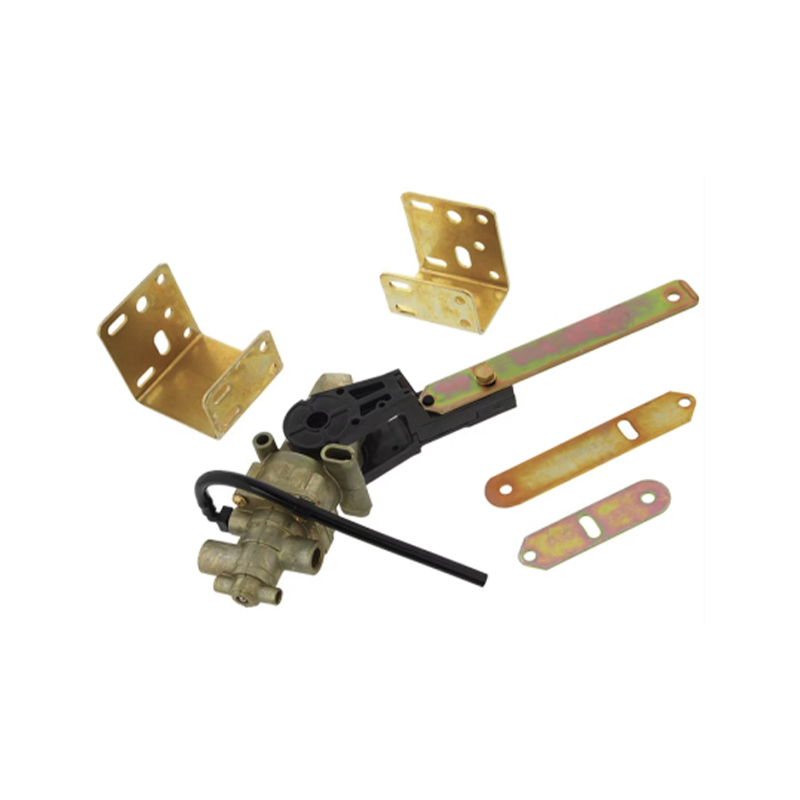

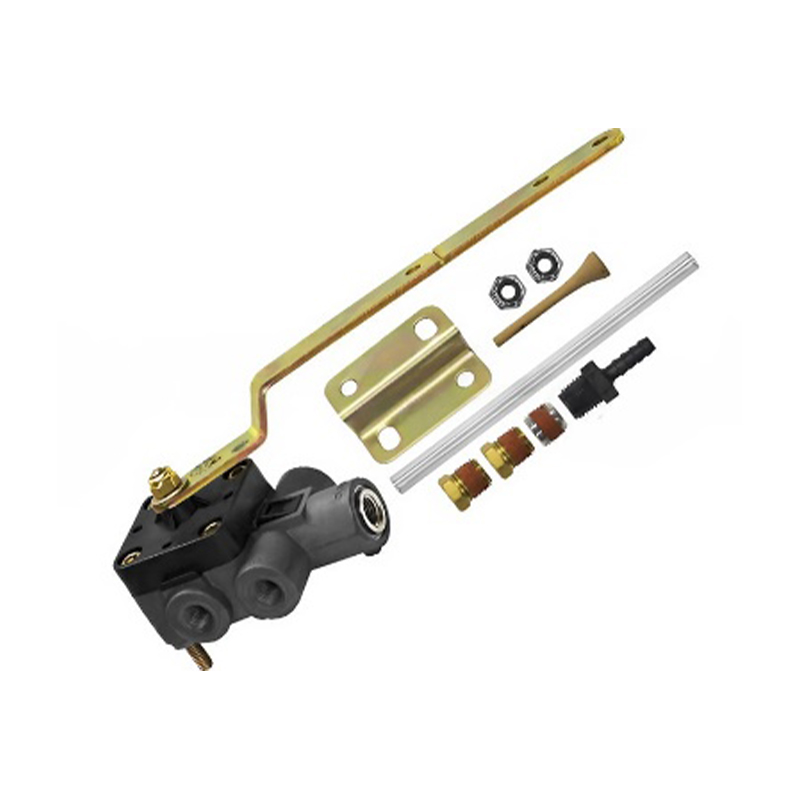

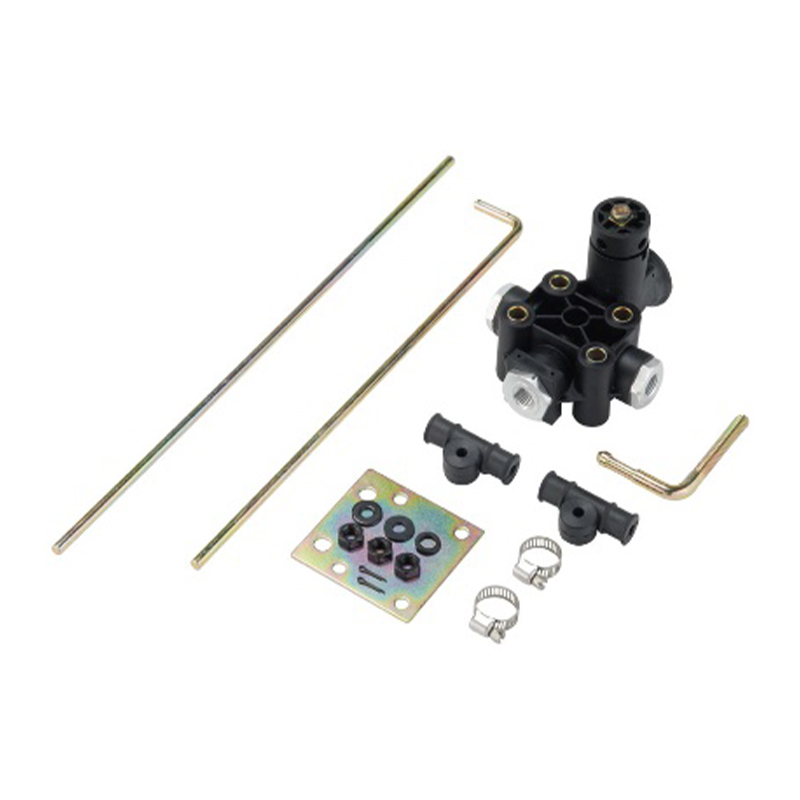

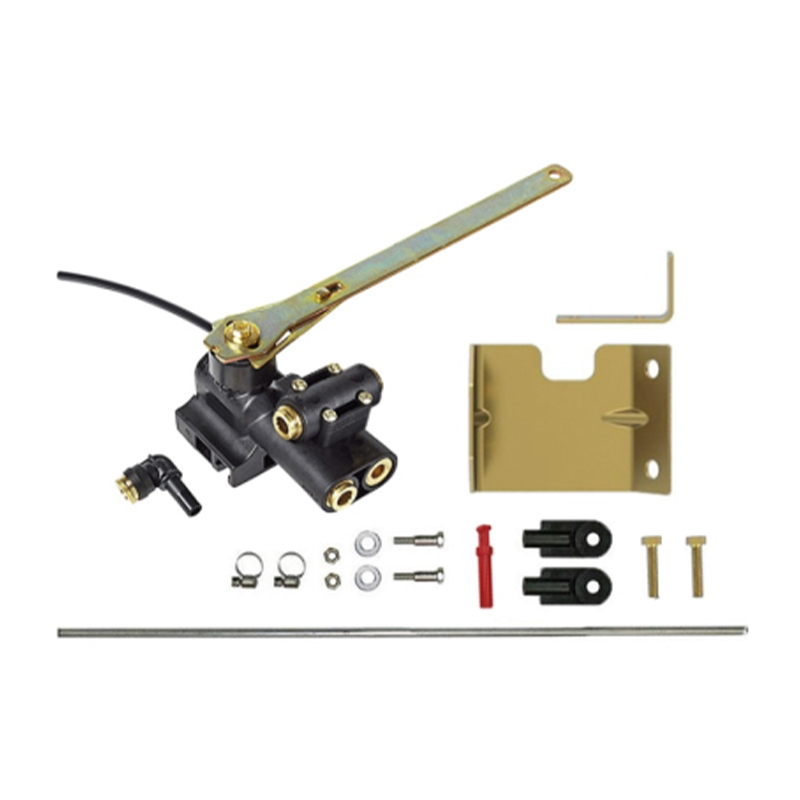

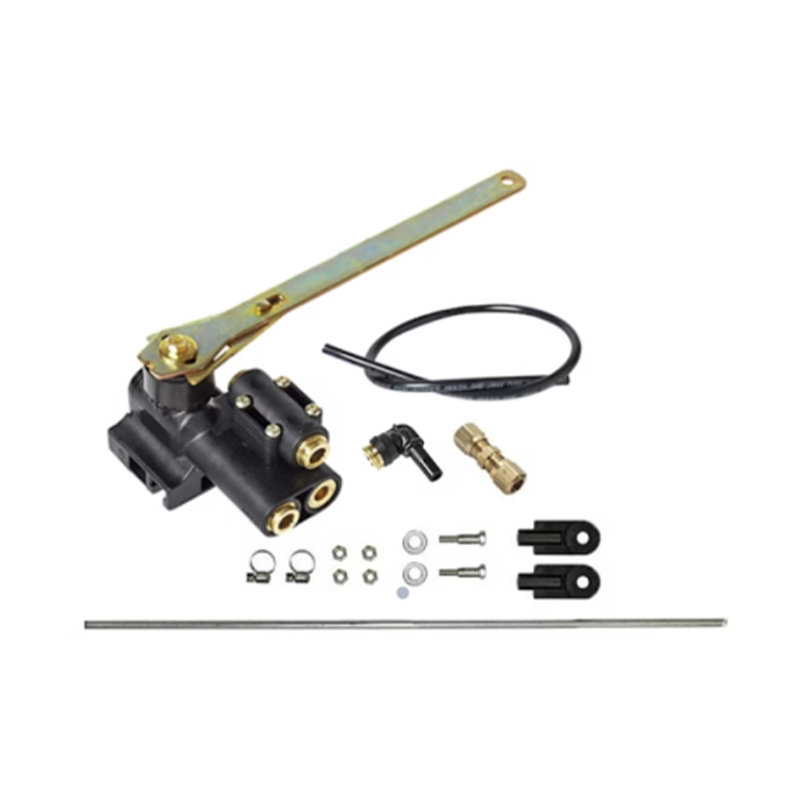

Our levelling valves are designed for straightforward installation using standard hand tools. Each unit includes a mounting bracket and linkage kit. We provide installation drawings and torque specifications. For maintenance, we recommend inspecting the linkage and cleaning the valve ports every 100,000 km or annually. Spare parts (rebuild kits, diaphragms, seals) are available from stock.
