American Brake Control Valve Manufacturer – Zhejiang Gongzheng Machinery

Zhejiang Gongzheng Machinery Co., Ltd. is a professional American Brake Control Valve manufacturer and supplier, specializing in pneumatic braking components for heavy-duty trucks, tractors, and trailers. Our product range includes anti-compounding spring brake control valves, parking brake safety protection valves, trailer emergency valves (TEV), and integrated brake guard units. These valves are engineered to meet the demanding safety and reliability requirements of North American commercial vehicle platforms.

We manufacture over 600,000 spring brake chambers annually and maintain a monthly output exceeding 60,000 air brake valves and air dryers. Our 30,000 m² factory integrates automated production lines with in-house component manufacturing—over 70% of parts are produced internally, ensuring consistent quality and traceability. We hold IATF certification and comply with international standards, making us a trusted partner for OEMs, fleet operators, and aftermarket distributors.

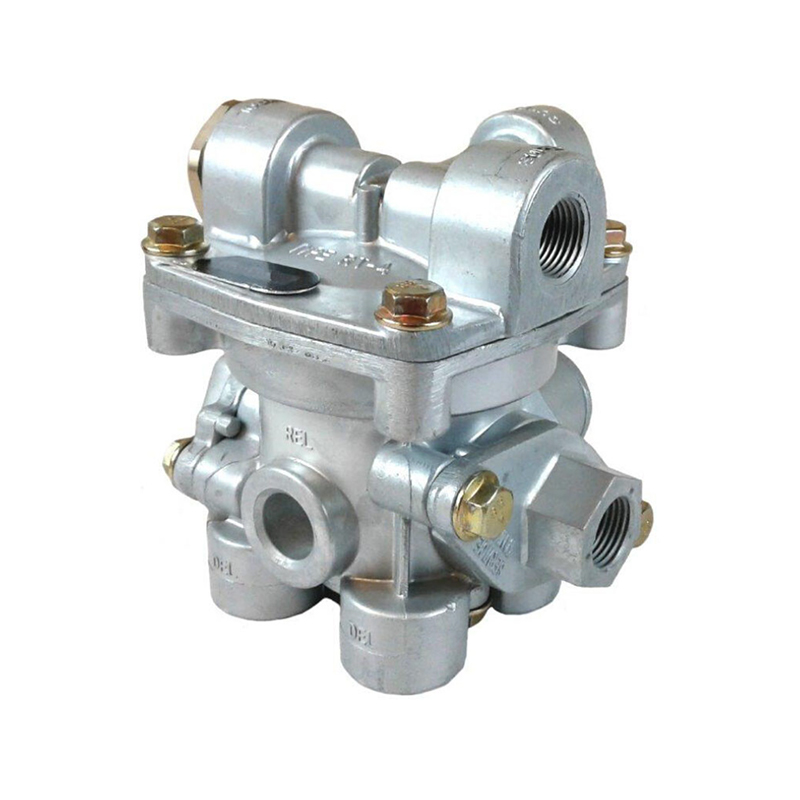

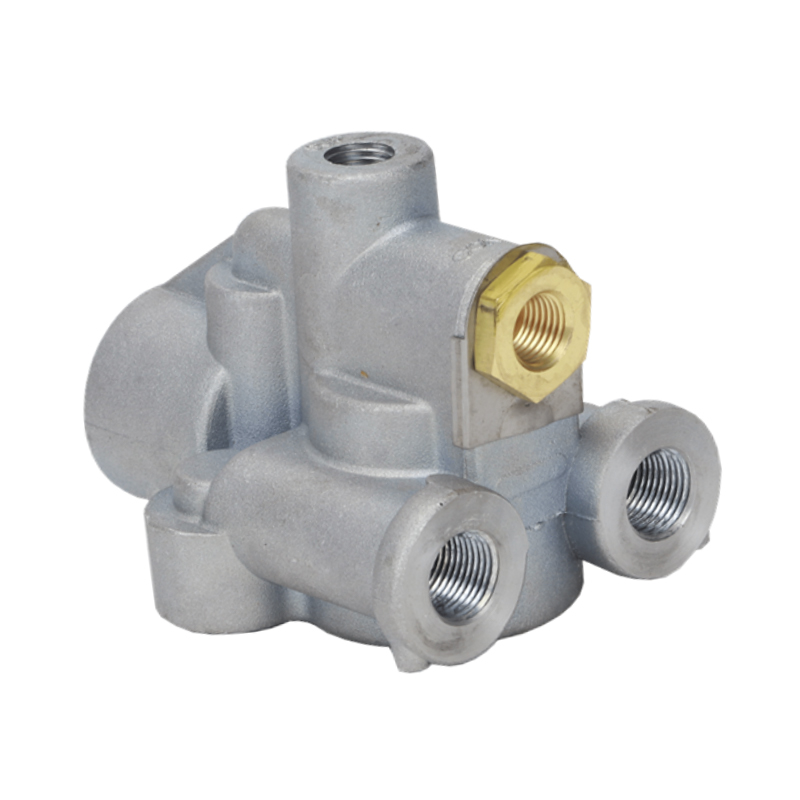

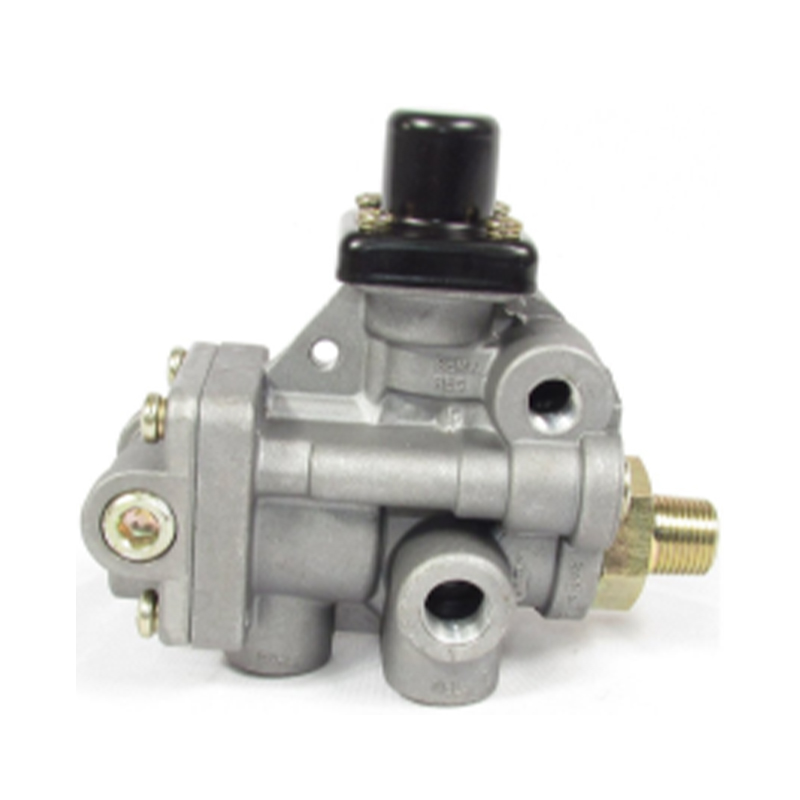

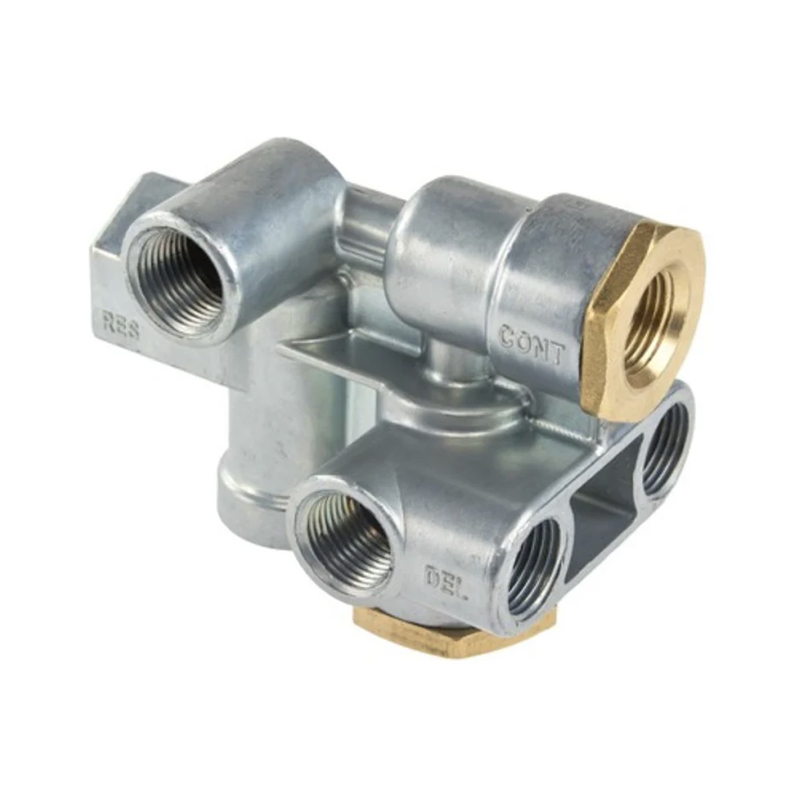

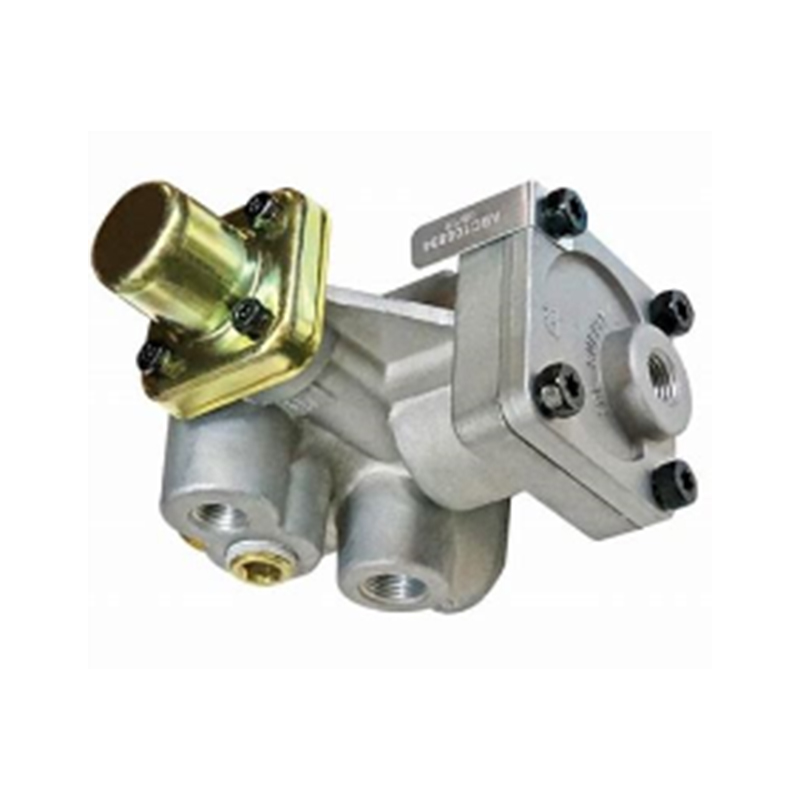

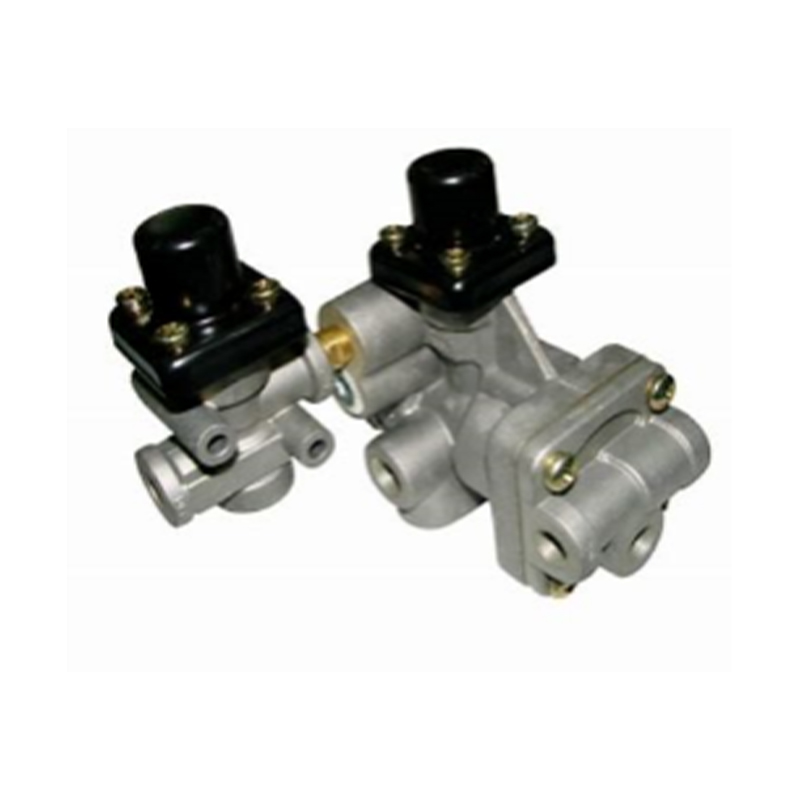

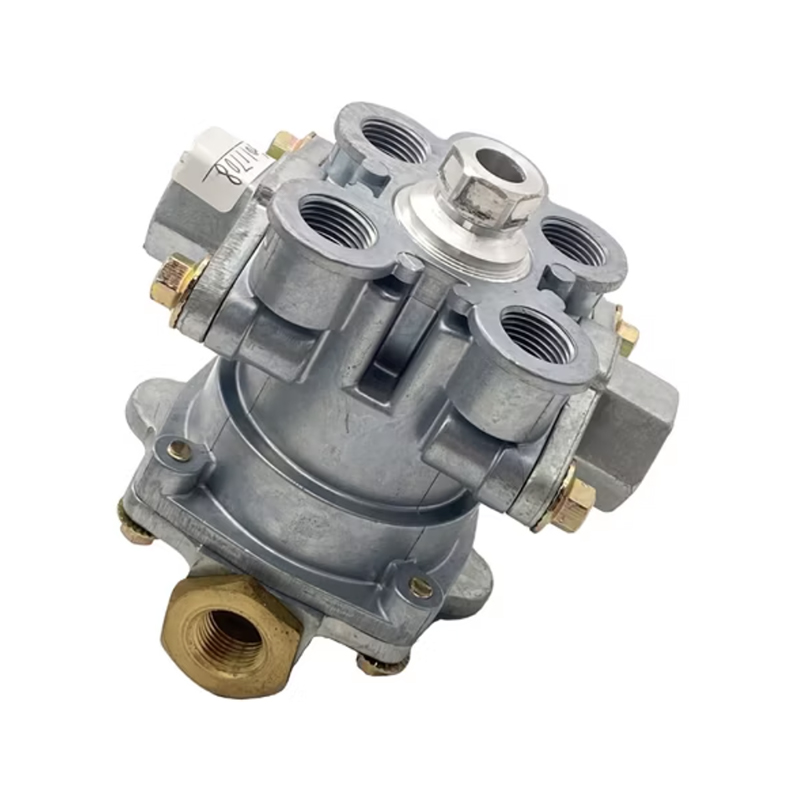

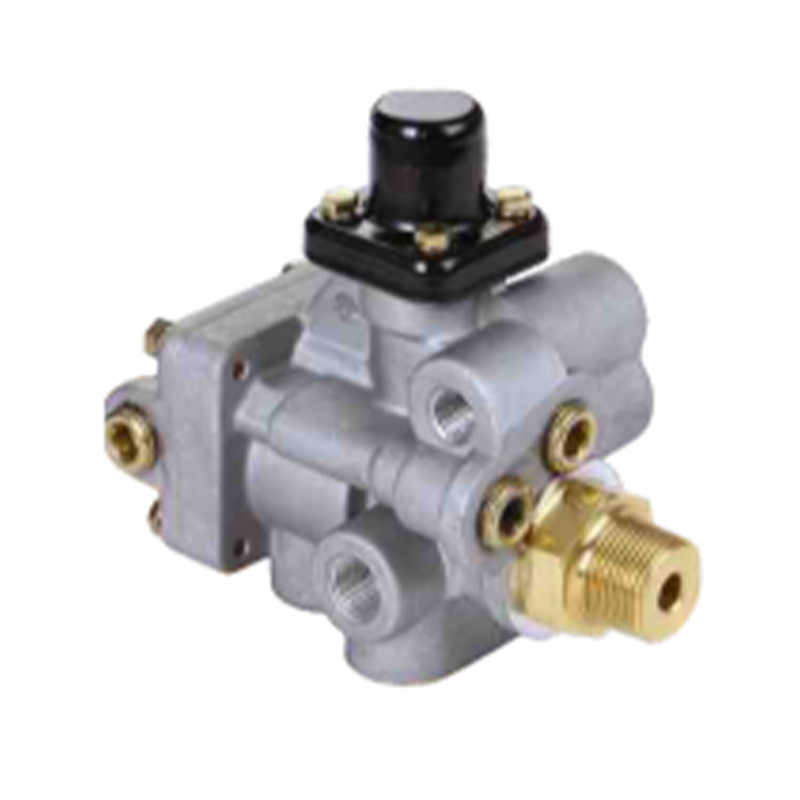

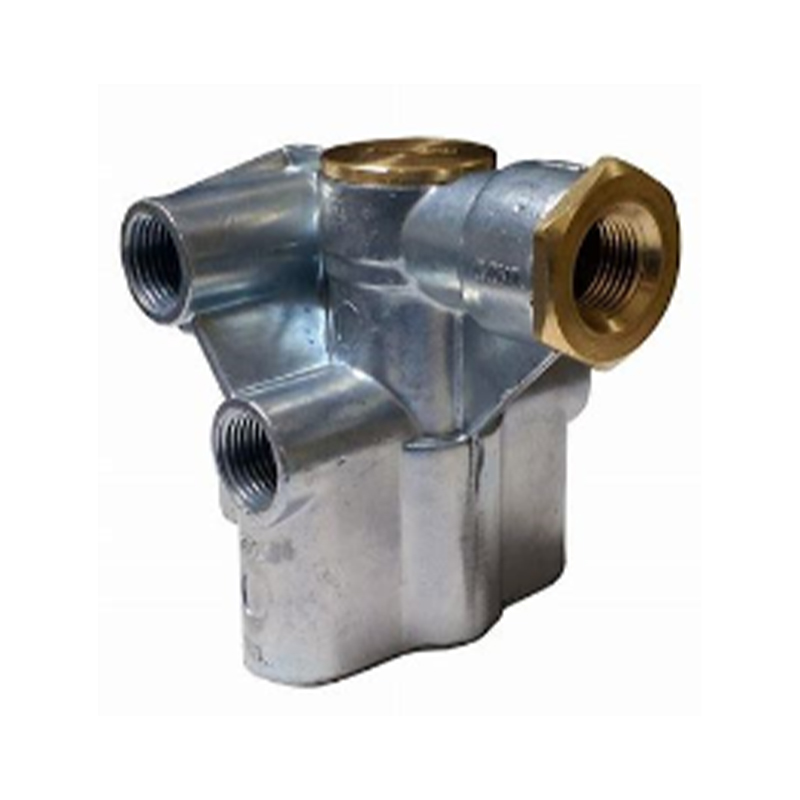

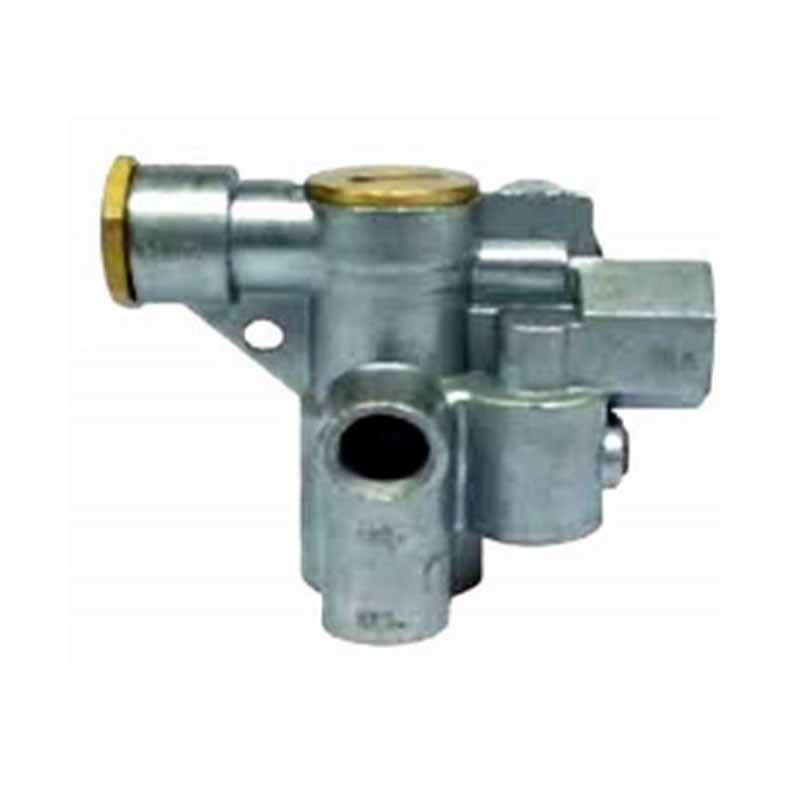

Our American Brake Control Valve Range

We supply several series of brake control valves designed for specific functions within the air brake system. Each series addresses distinct operational requirements, from spring brake management to emergency braking and pressure distribution.

Application Fit and Engineering Value

Our American brake control valves are designed for pneumatic braking systems operating at nominal pressures of 100–120 psi (6.9–8.3 bar). They are compatible with standard SAE J844 nylon tubing and NPTF ports. The valves feature corrosion-resistant materials, including anodized aluminum bodies and stainless steel internal components, to withstand road salt, moisture, and temperature extremes from –40°C to +85°C.

We engineer each valve to meet FMVSS 121 requirements for stopping distance and brake timing. The anti-compounding logic in our SR-4, SR-5, and SR-2 series prevents the driver from simultaneously applying service and spring brakes, reducing the risk of driveline damage and loss of control. Our TEV valves include integrated pressure protection to prevent trailer brake lockup during emergency applications.

Critical Specifications and Performance

• Operating pressure range: 0–150 psi (0–10.3 bar)
• Flow capacity: Up to 25 SCFM at 100 psi depending on port size
• Response time: < 0.2 seconds for apply/release cycles
• Leakage rate: < 10 cc/min at rated pressure
• Port sizes: 1/4" NPTF, 3/8" NPTF, or SAE J844 push-to-connect
• Cycle life: > 1 million cycles for spring brake control valves

Configuration and Customization

We offer standard configurations for common applications, but we also support OEM/ODM customization. When you provide samples or specification drawings, our engineering team can modify port orientations, pressure settings, mounting brackets, or integrate additional functions such as pressure switches or quick-release features. We maintain a standing inventory of over 200,000 units, enabling rapid prototyping and volume production.

Quality Assurance and Testing

Every valve undergoes functional testing on automated test benches, including pressure decay leak tests, flow characterization, and cycle endurance. Our quality management system is certified to IATF 16949, and we have obtained Germany's TÜV certification for specific product lines. We also conduct environmental testing (thermal shock, vibration, salt spray) to validate durability under real-world conditions.

Installation, Maintenance, and Support

All valves are supplied with installation instructions and torque specifications. We recommend using thread sealant (e.g., PTFE paste) on NPTF ports and avoiding overtightening. Maintenance intervals depend on operating conditions; we suggest inspecting valves annually for external damage, leakage, and proper function. Replacement parts and service kits are available for most series.

Our technical support team provides documentation, including dimensional drawings, performance curves, and troubleshooting guides. For customized projects, we assign a dedicated engineer to assist with integration and validation.

Information We Use to Configure Your Solution

To prepare a precise quotation and configuration, we need the following project information:

• Vehicle type (truck, tractor, trailer, bus) and gross vehicle weight rating (GVWR)
• Brake system architecture (single or dual circuit, spring brake configuration)
• Required valve function (anti-compounding, parking brake control, emergency protection)
• Port size and type (NPTF, SAE push-to-connect, or custom)
• Operating pressure range and ambient temperature extremes
• Target cycle life and any specific regulatory standards (FMVSS 121, ECE R13)
• Quantity and delivery timeline

Submit these details through our inquiry form, and we will respond with a technical proposal and commercial offer within 48 hours.
