American Air Manifold Manufacturers

Product Range & Application Fit

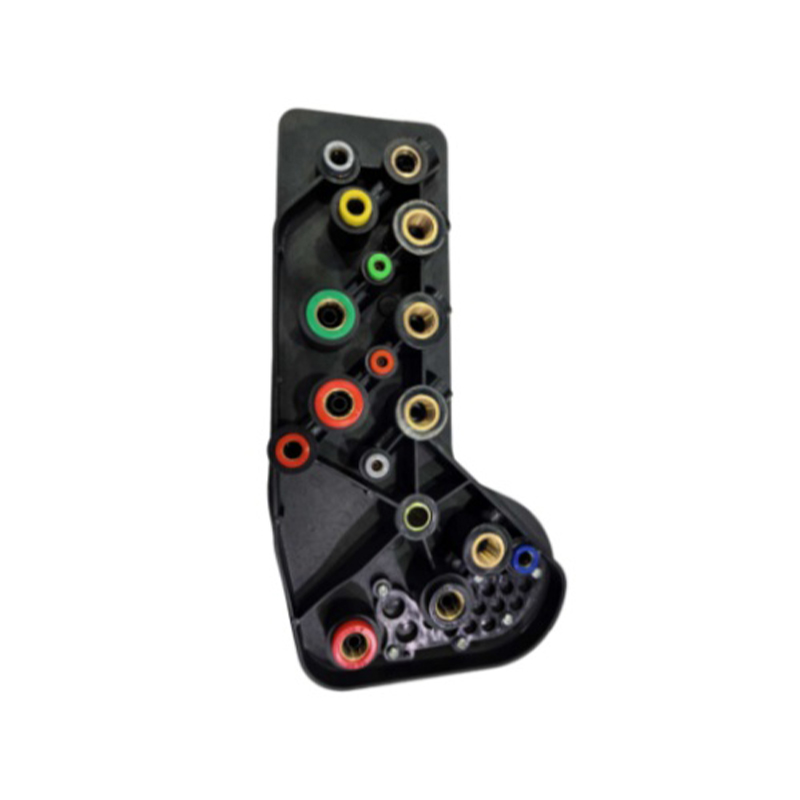

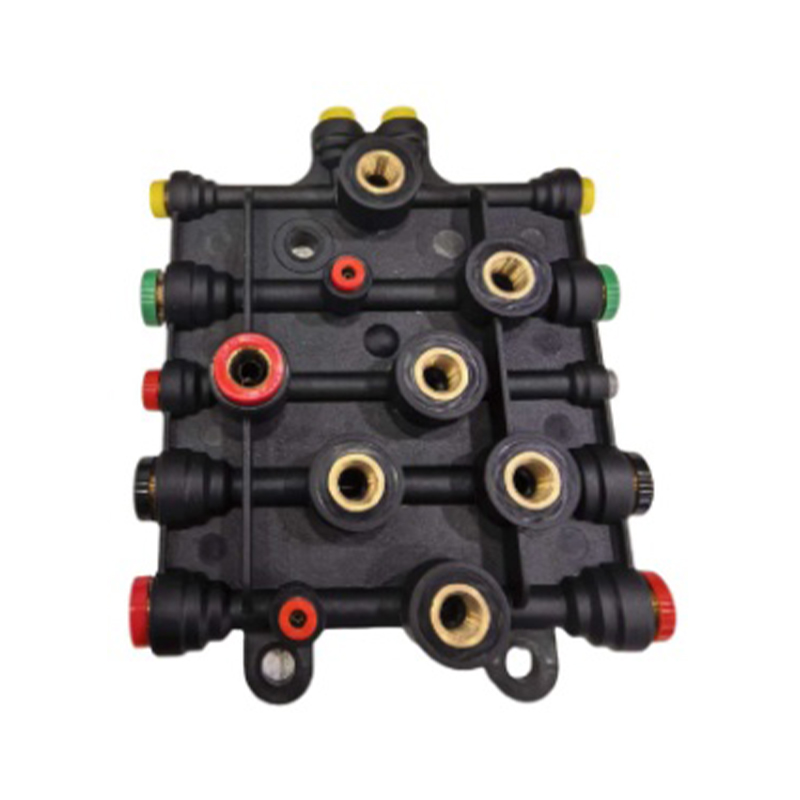

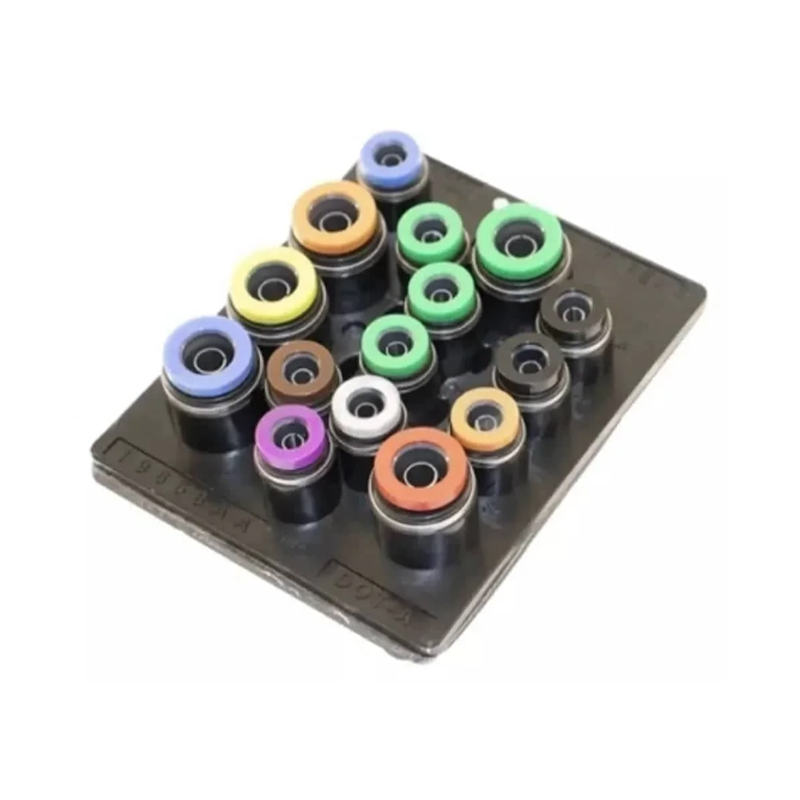

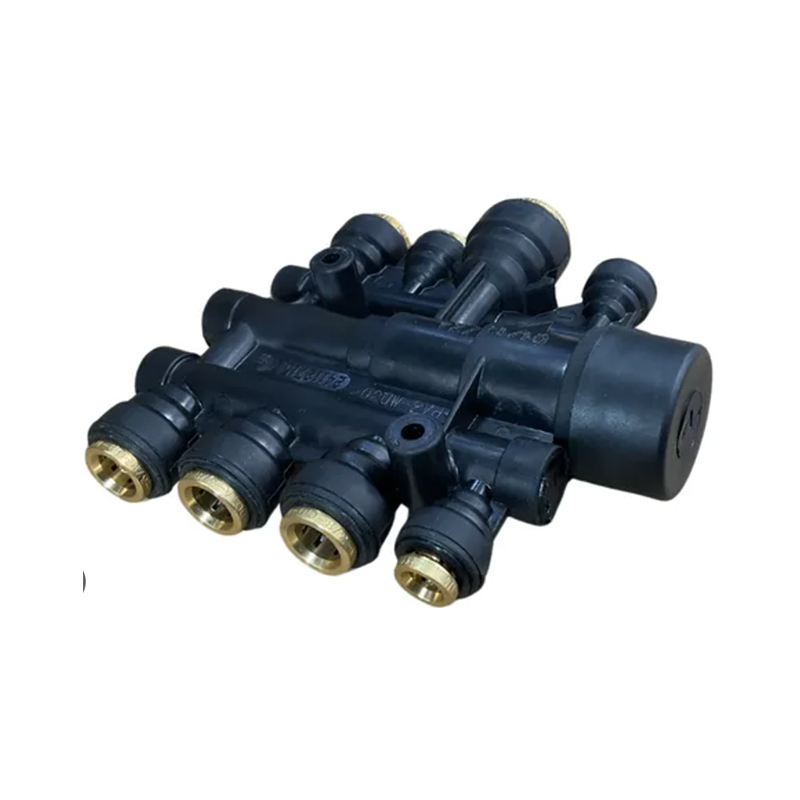

We supply several manifold configurations to match different pneumatic circuit architectures. Each type is built from corrosion-resistant materials and tested for leak-free performance.

Critical Specifications & Materials

Our American air manifolds are manufactured from high-grade aluminum alloy or corrosion-protected steel, depending on the application. Port sizes follow SAE J844 and J1926 standards, with NPT or O-ring boss options. Operating pressure range is typically 8–12 bar (120–175 psi). Each manifold is 100% leak-tested at 1.5 times the rated pressure. We use EPDM or NBR seals rated for -40°C to +100°C.

Configuration & Customization

We configure each manifold based on the number of circuits, port orientation, mounting bracket style, and any integrated valve functions (pressure protection, check, or drain). For OEM and ODM projects, we can modify port locations, add identification markings, or integrate pressure sensors. Our engineering team works from customer samples or CAD models to deliver a suitable design quickly.

• Port count: 4 to 12 outlets per manifold
• Mounting: Flange, bracket, or direct chassis mount
• Integrated valves: Pressure protection, check, drain, or pressure switch ports
• Surface treatment: Anodizing, zinc plating, or powder coating

Quality Assurance & Compliance

Our manufacturing facility is IATF 16949 certified, and every manifold undergoes dimensional inspection, leak testing, and functional validation before shipment. We maintain in-house testing for pressure cycling, vibration resistance, and environmental exposure. Our quality system covers raw material traceability, in-process control, and final acceptance records.

Installation, Maintenance & Support

Each manifold is supplied with installation instructions and recommended torque values. We advise using thread sealant on NPT ports and verifying that all circuit protection settings match the vehicle pneumatic schematic. Routine maintenance involves periodic inspection of seal integrity and port cleanliness. Spare seal kits and replacement pressure protection cartridges are available from our stock.

Information We Use to Configure Your Solution

To prepare a precise quotation and manifold configuration, we need the following project details:

• Number of pneumatic circuits and required flow rate per circuit

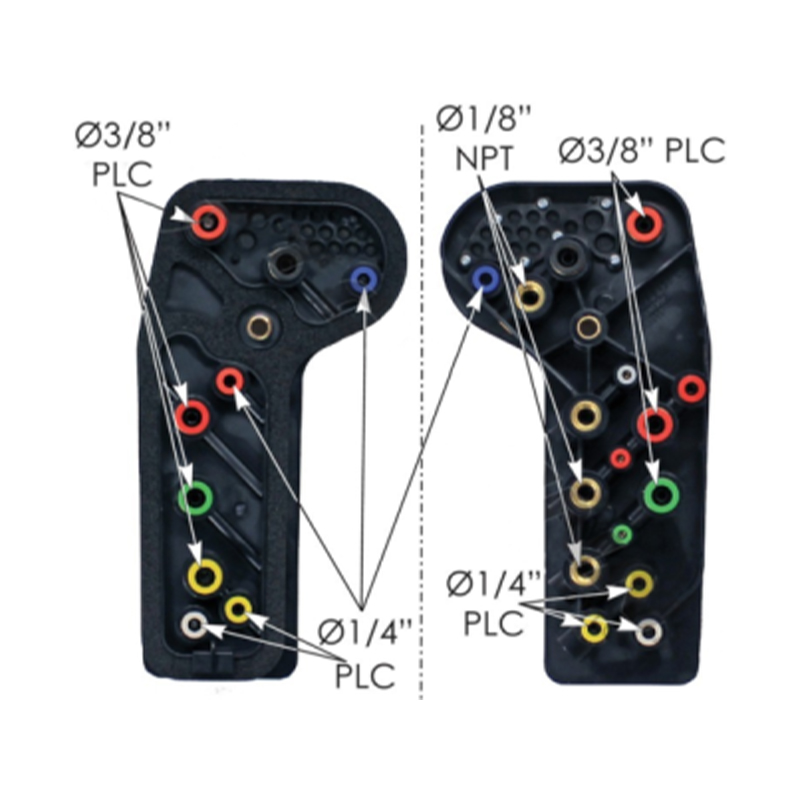

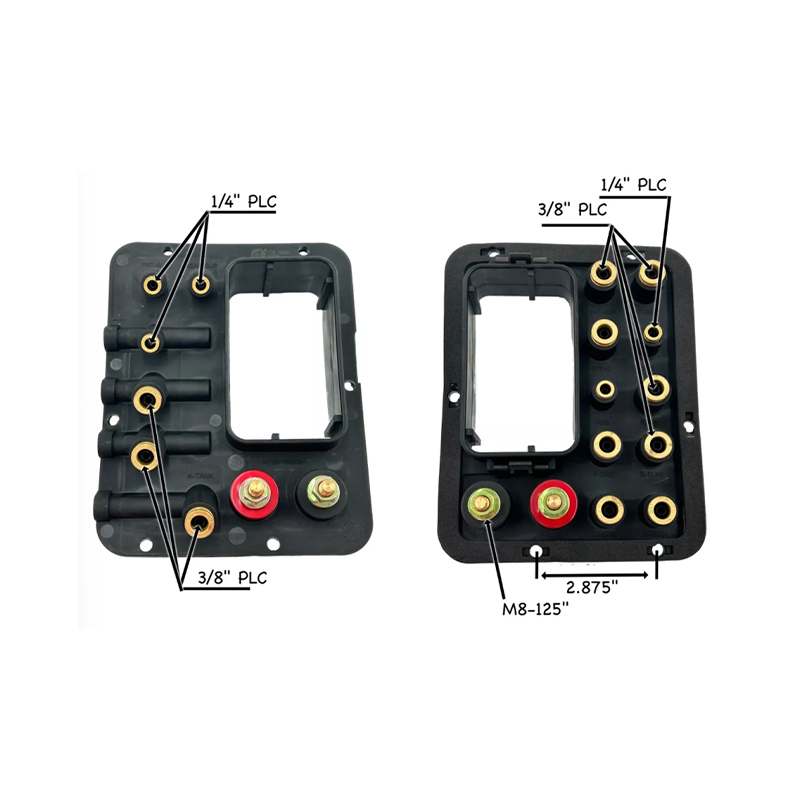

• Port size and type (NPT, O-ring boss, or push-to-connect)
• Operating pressure range and ambient temperature range
• Mounting space constraints and orientation
• Required integrated functions (pressure protection, check valve, drain, sensor ports)
• Target vehicle type (truck, bus, trailer) and any OEM specification
• Desired surface treatment and color
• Annual volume and delivery schedule
