American Air Dryer Manufacturer – Zhejiang Gongzheng Machinery

Zhejiang Gongzheng Machinery Co., Ltd. is a professional American Air Dryer manufacturer and supplier based in Zhuji, Zhejiang, China. We design and produce a full range of air dryer assemblies, replacement cartridges, and integrated system protection units for Class 6–8 trucks, tractors, buses, and trailers operating in North American and global markets. Our product line covers AD-9 series, AD-IP style, spin-on, high-volume, and multi-platform configurations, all engineered to meet the moisture removal and filtration demands of commercial vehicle air brake systems.

With a 30,000 m² factory, in-house R&D laboratory, and IATF 16949 certification, we control every stage from desiccant selection to final assembly leak testing. We support OEM, ODM, and aftermarket projects with rapid prototyping, custom branding, and technical documentation.

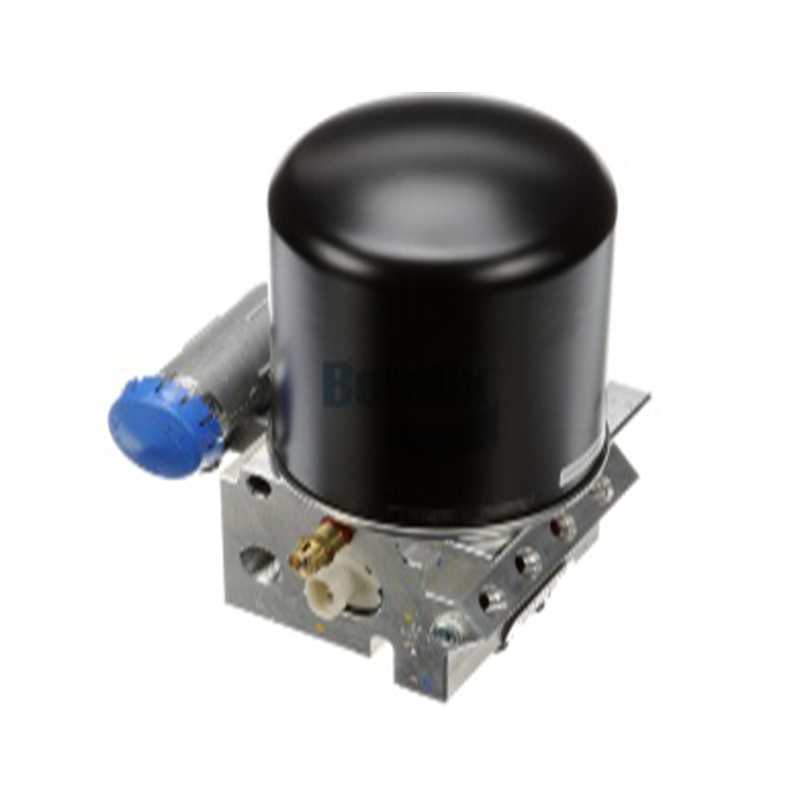

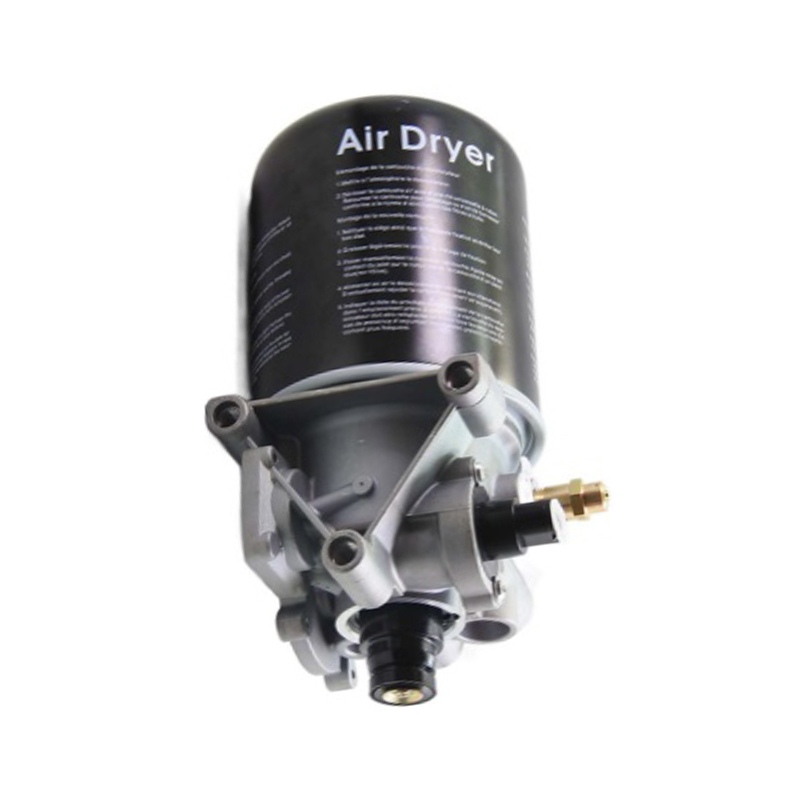

Product Range – Assemblies and Cartridges

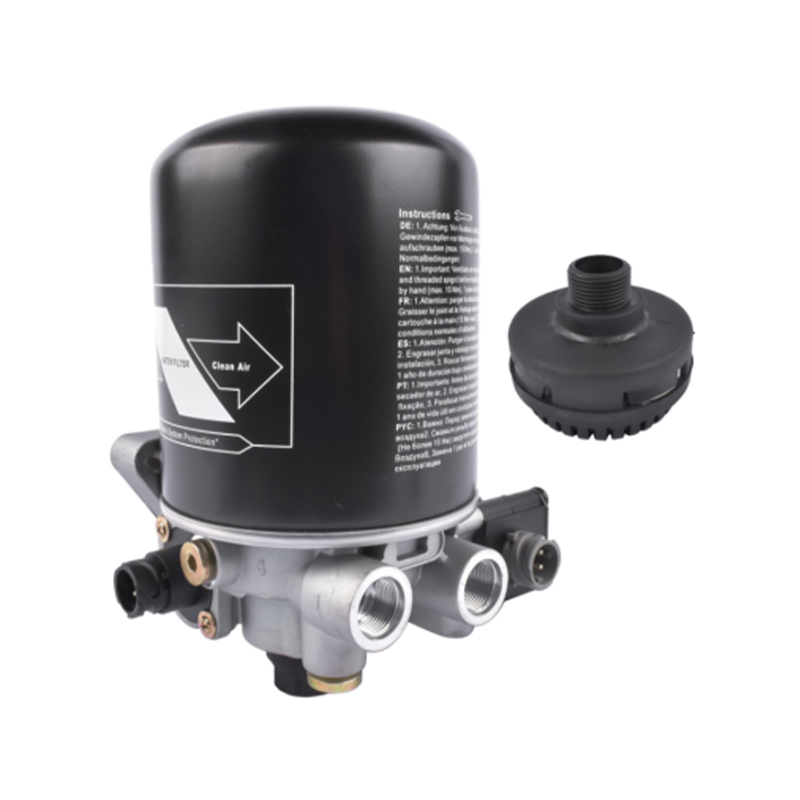

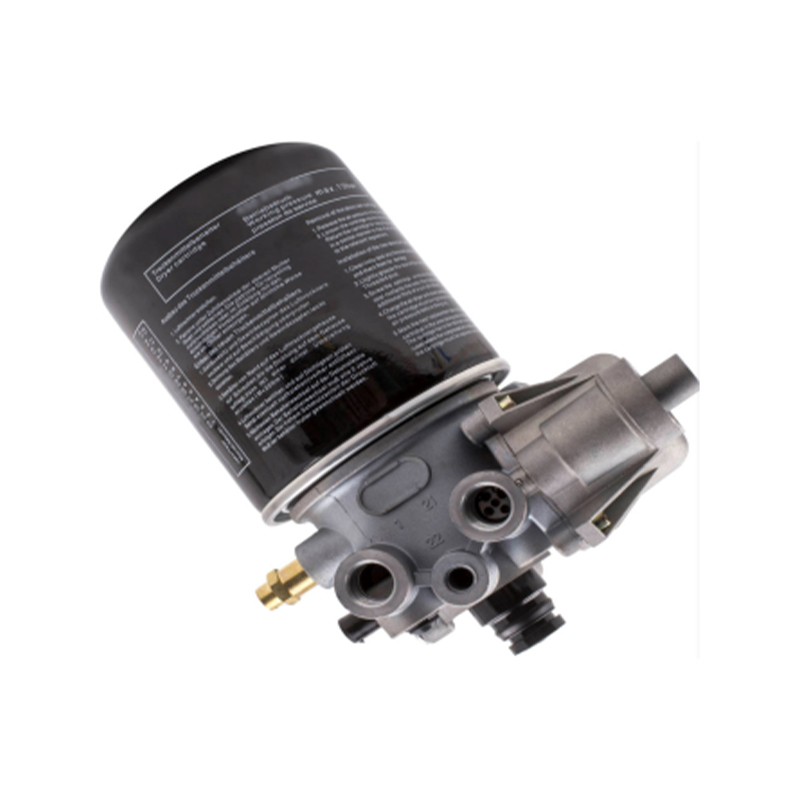

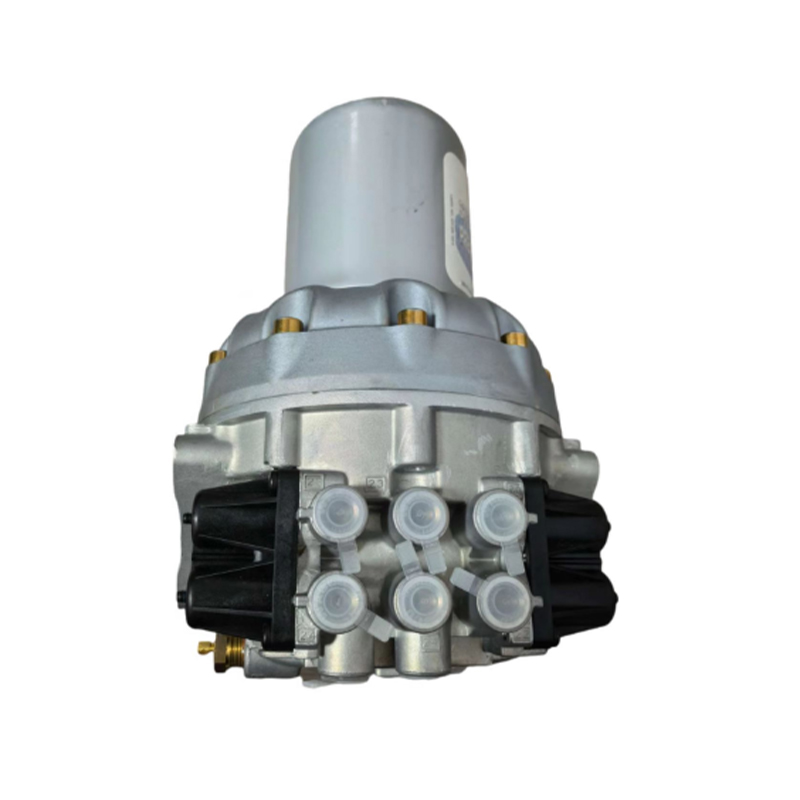

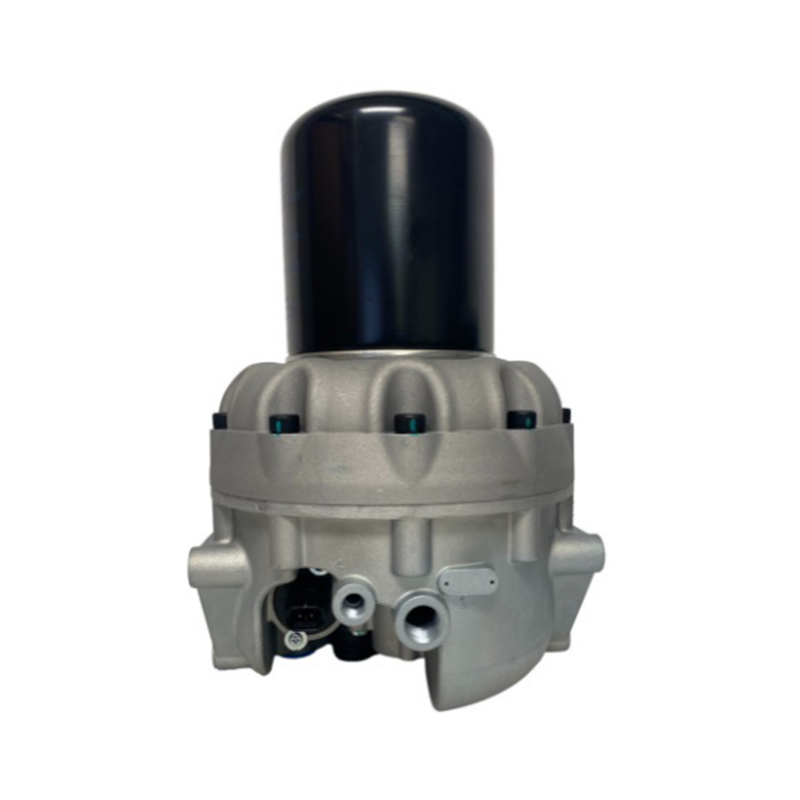

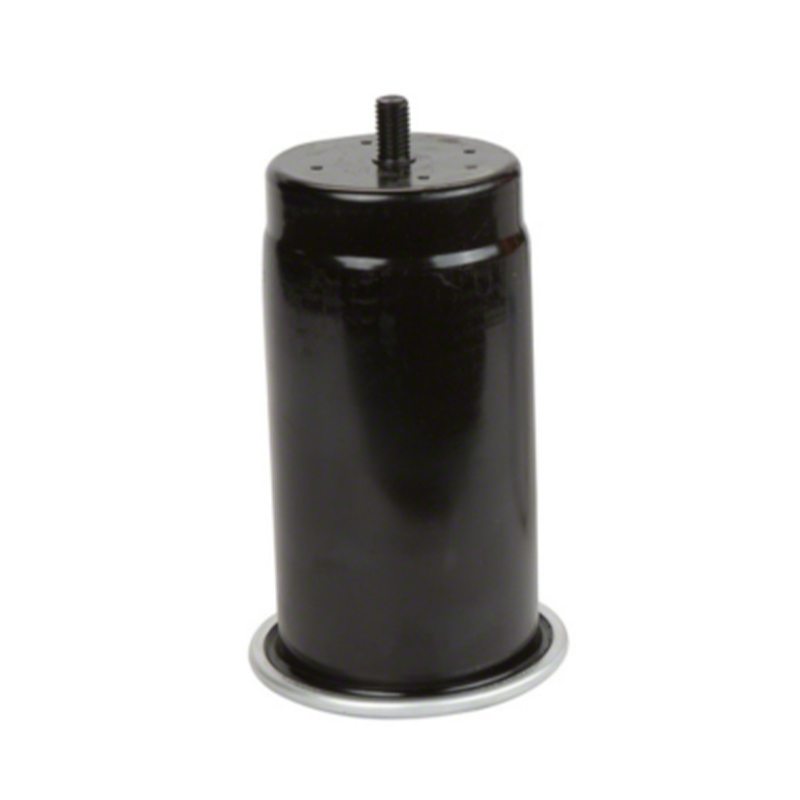

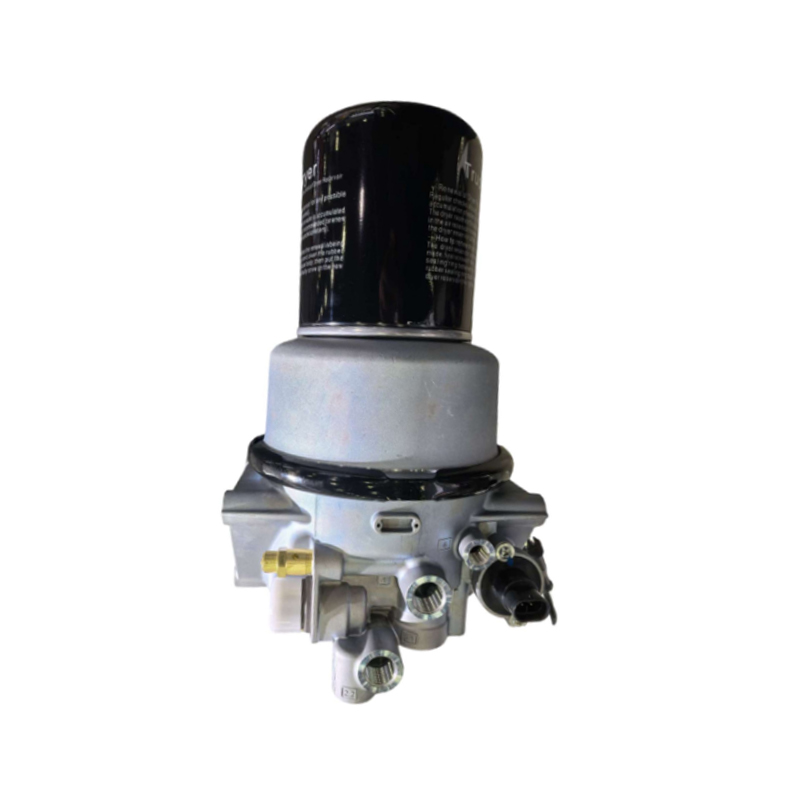

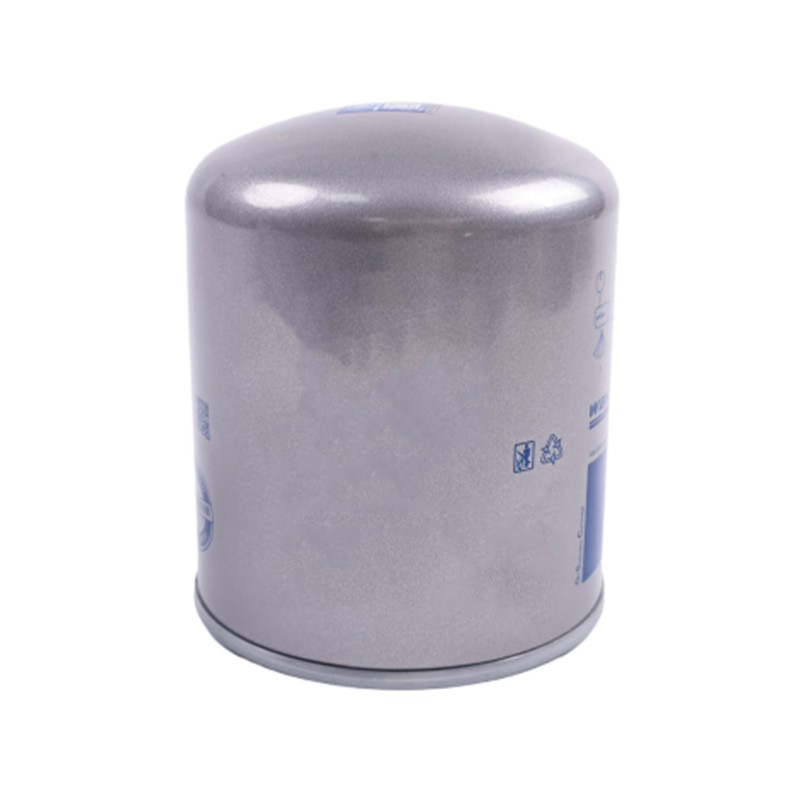

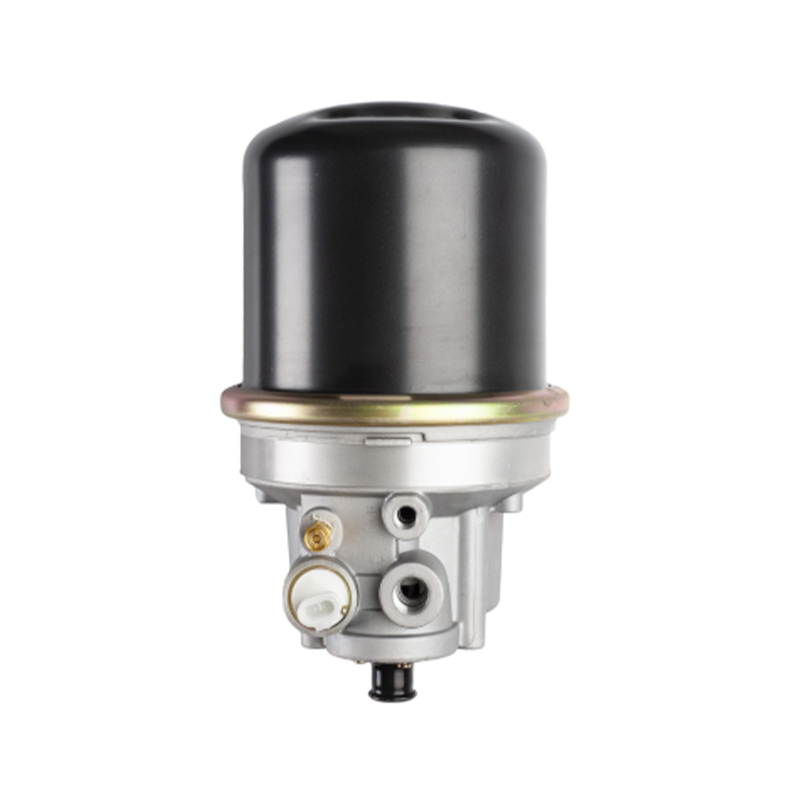

We supply both complete air dryer assemblies and service replacement cartridges. The table below summarises the main configurations we offer and their typical application fit.

Application Fit and Process Requirements

An air dryer must match the compressor output, system volume, and duty cycle of the vehicle. We select the appropriate assembly or cartridge based on:

• Air compressor displacement – typically 12–24 cfm for heavy-duty North American trucks.
• System operating pressure – standard 100–130 psi (6.9–9 bar) with options for higher setpoints.
• Purge volume and regeneration method – internal or external purge reservoir, timed or demand-based regeneration.
• Ambient temperature range – heated purge valve and thermostat for cold-climate operation below -20 °C.
• Mounting configuration – frame rail, firewall, or remote mount with bracket kits.

We also supply assemblies with integrated tire inflation ports, multi-circuit protection valves, and pressure-limiting features for specialised vocational bodies.

Critical Specifications and Performance

Every air dryer we manufacture is leak-tested and verified for dew-point suppression. Key parameters we control:

• Desiccant type – activated alumina or molecular sieve blend, selected for target dew point (-20 °C to -40 °C).
• Filtration rating – 5–10 µm particulate removal plus coalescing stage for oil aerosol separation.
• Flow capacity – rated up to 30 scfm continuous with minimal pressure drop.
• Purge consumption – typically 12–18% of compressor output; low-purge designs available.
• Cycle life – validated to 1 million+ regeneration cycles in accelerated testing.

We provide dimensional drawings, port thread specifications (NPT, BSP, or custom), and electrical interface details for heated models on request.

Quality Assurance and Compliance

Our quality management system is certified to IATF 16949. Incoming desiccant and filter media are batch-tested for moisture capacity and crush strength. Each assembly undergoes:

• Leak test at 150 psi (10.3 bar) with helium mass spectrometry.
• Functional test of purge valve, check valve, and heater (if equipped).
• Visual inspection of housing finish and thread condition.

Products comply with FMVSS 121 requirements for air brake system cleanliness and moisture control. We also offer ECE R13 certification documentation for export projects.

Customisation and OEM/ODM Support

We regularly modify existing designs or develop new assemblies based on customer samples, CAD models, or performance targets. Our R&D team can adjust:

• Port orientation and thread type (NPT, BSP, metric).
• Mounting bracket geometry and material (steel, aluminium, stainless).
• Purge reservoir volume and location (integrated or remote).
• Branding, packaging, and labelling for private-label distribution.

Typical lead time for a custom prototype is 4–6 weeks after specification approval. We maintain a standing inventory of over 200,000 units for rapid order fulfilment.

Information We Use to Configure Your Solution

To prepare a quotation and technical proposal, we need the following project data:

Submit these details through our inquiry form or contact our engineering team directly. We respond with a technical datasheet, dimensional drawing, and commercial offer within two working days.

Maintenance, Spare Parts, and Serviceability

We recommend cartridge replacement every 12–18 months or 100,000 miles, depending on compressor condition and ambient moisture load. Our service kits include:

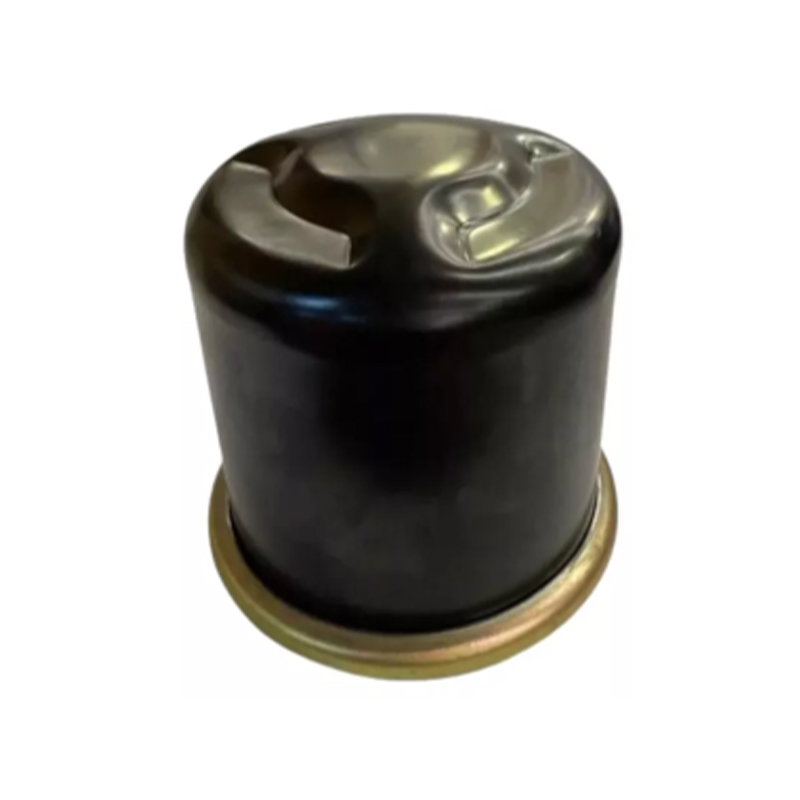

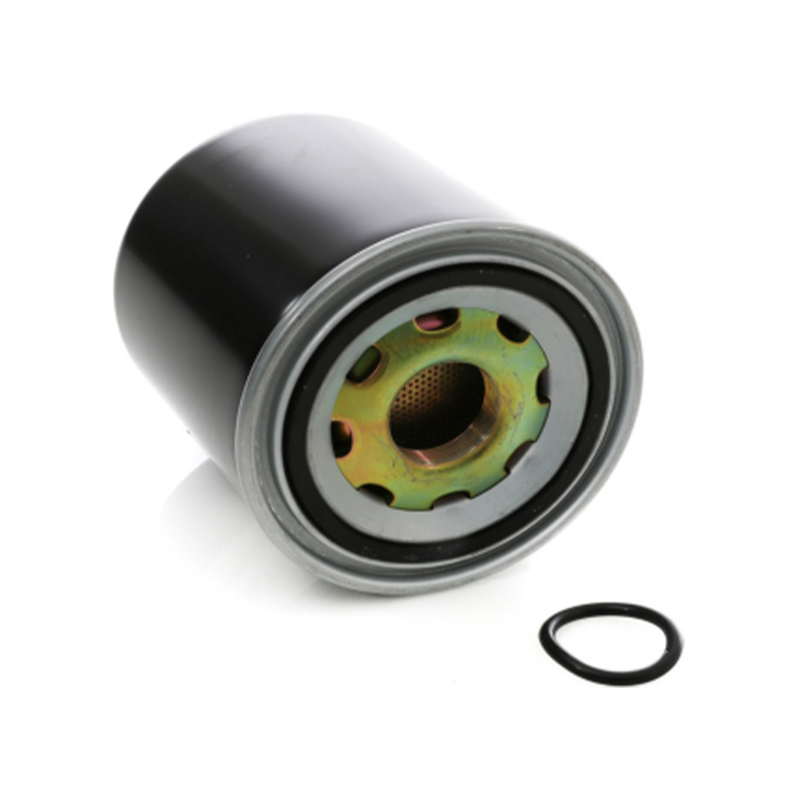

• Desiccant cartridge with pre-filter and coalescing media.
• Purge valve rebuild kit (diaphragm, spring, O-rings).
• Heater element and thermostat (for heated models).

Each assembly is designed for field service with standard tools. We provide installation manuals, torque specifications, and troubleshooting guides in English and Spanish.
