American Relay Valve Manufacturer – Precision Pneumatic Control for Commercial Air Brake Systems

Zhejiang Gongzheng Machinery Co., Ltd. is a professional American Relay Valve manufacturer and supplier, specializing in high-performance pneumatic relay valves for heavy-duty trucks, trailers, buses, and off-highway equipment. Our product range covers R-6, R-8, R-12, R-14, and specialized pilot and anti-compounding series, designed to meet FMVSS 121 and global air brake system requirements. With a 30,000 m² factory, IATF 16949 certification, and an independent R&D team, we deliver reliable, high-flow relay valves for OEM and aftermarket projects.

Our American Relay Valve Range

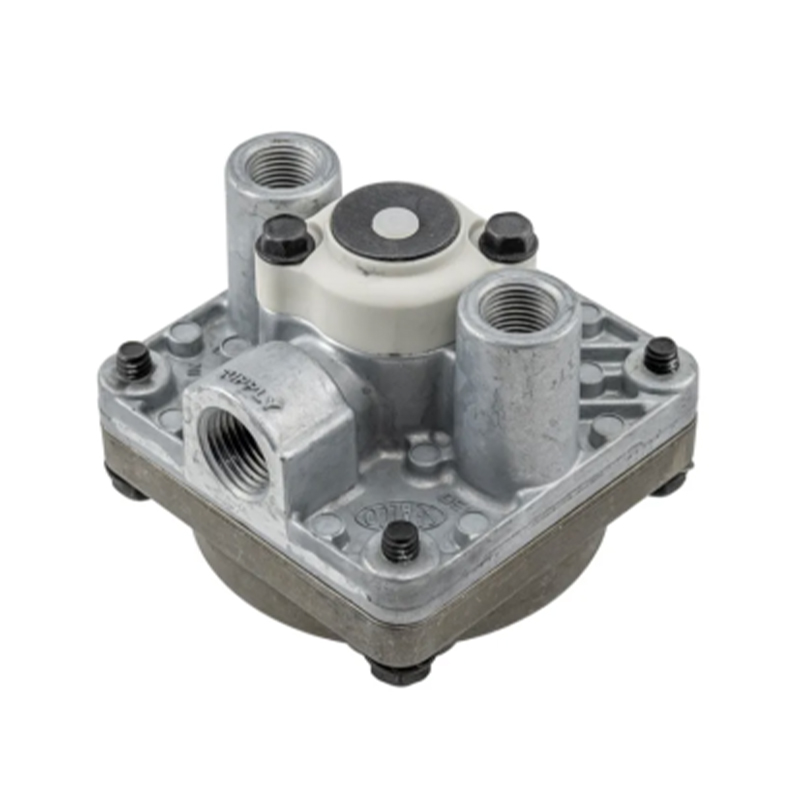

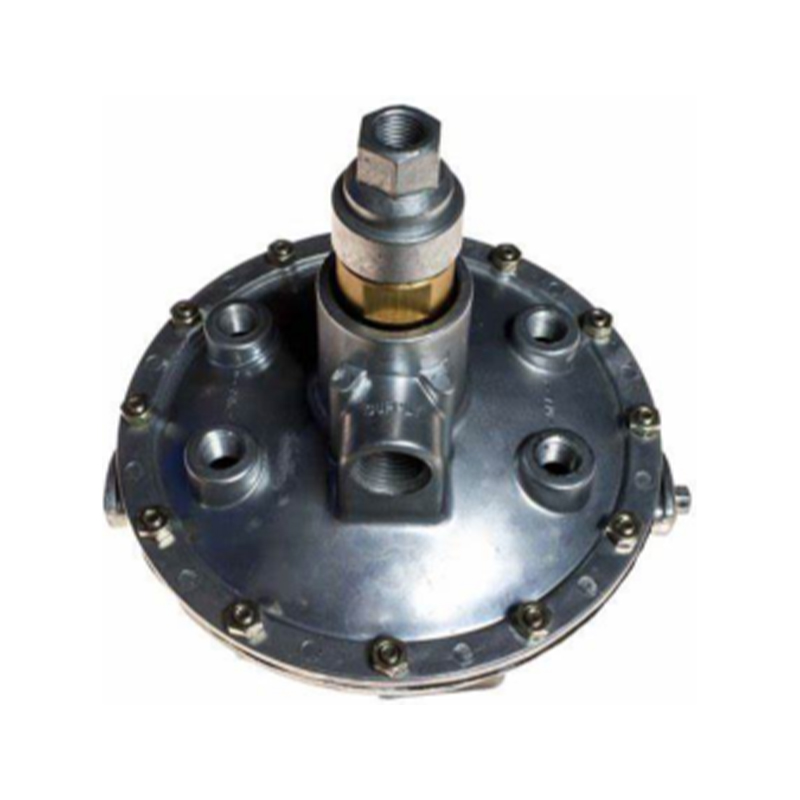

We manufacture a complete lineup of service relay valves, pilot relay valves, anti-compounding valves, and spring brake control units. Each series is engineered for specific flow rates, response times, and mounting configurations. Below is our standard offering:

Application Fit and Engineering Value

American relay valves are critical for reducing brake response time by locally amplifying pilot pressure near the brake chamber. We design each valve to match the vehicle's air system volume, operating pressure range (typically 8.6–12.5 bar), and mounting envelope. Our valves are compatible with standard NPT or quick-connect ports and can be configured for frame or crossmember mounting.

We support both original equipment and replacement projects. For OEMs, we offer custom port locations, pressure settings, and corrosion-resistant coatings. For the aftermarket, our valves are direct replacements for popular OEM part numbers, ensuring plug-and-play installation.

Critical Specifications and Performance

• • Flow Capacity: Up to 3500 L/min at 8.6 bar for R-12 series, ensuring rapid brake chamber fill.
• • Response Time: Typically < 0.3 seconds from pilot signal to full delivery pressure.
• • Operating Temperature: –40°C to +80°C, suitable for all climates.
• • Materials: Aluminum alloy body, stainless steel internal springs, and nitrile rubber seals for durability.
• • Port Sizes: 1/4", 3/8", 1/2" NPT or BSP as specified.

Quality Assurance and Compliance

Our manufacturing facility is IATF 16949 certified, and every relay valve undergoes 100% functional testing for leakage, cracking pressure, and flow rate before shipment. We also hold ISO 9001 and have passed TÜV audits for product safety. Our valves comply with FMVSS 121, ECE R13, and relevant Chinese GB standards. We maintain a standing inventory of over 200,000 units to support urgent orders.

Configuration and Customization

We offer several configuration options to match your vehicle architecture:

• • Port Configuration: Single or dual delivery ports, with or without integral check valves.
• • Actuation: Direct pneumatic pilot or integrated solenoid for ABS/EBS compatibility.
• • Coatings: Clear anodized, black anodized, or zinc-nickel plating for corrosion resistance.
• • Mounting: Bracket or flange mount, with custom hole patterns available.

Our R&D team can modify existing designs or develop a new valve based on your sample or 3D model. Rapid prototyping and sample delivery within 15–20 working days are standard.

Installation, Maintenance, and Support

Each relay valve is supplied with installation instructions and torque specifications. We recommend using thread sealant on all ports and verifying air system cleanliness before installation. Routine maintenance includes checking for external leaks and verifying response time every 100,000 km or annually. Spare parts such as seal kits and rebuild kits are available for field service.

We provide technical documentation, including dimensional drawings, flow curves, and CAD models upon request. For large projects, our engineers can assist with system integration and on-site commissioning.

Information We Use to Configure Your Solution

To prepare an accurate quotation and valve configuration, we need the following project data:

• • Vehicle Type: Truck, tractor, trailer, bus, or off-highway equipment.
• • Air System Pressure: Nominal operating pressure and maximum pressure.
• • Brake Chamber Volume: Total volume to be served per axle.
• • Mounting Space: Available envelope and preferred port orientation.
• • Required Flow Rate: Desired fill time or flow specification.
• • Compliance Standards: FMVSS 121, ECE R13, or other regional requirements.
• • Quantity: Annual volume and delivery schedule.

Submit these details via our inquiry form, and our application engineers will respond with a tailored proposal within 48 hours.
