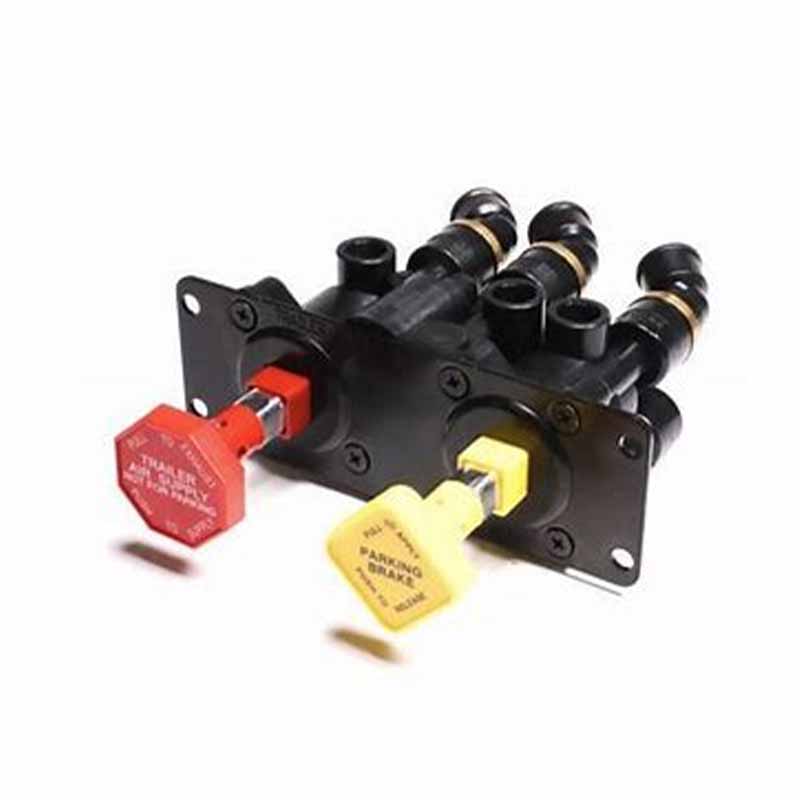

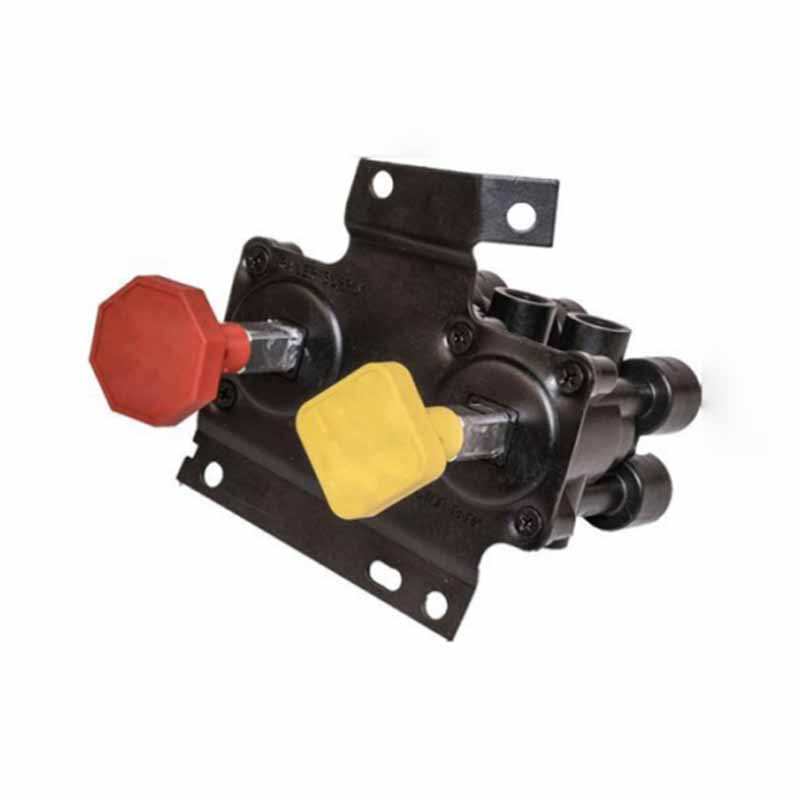

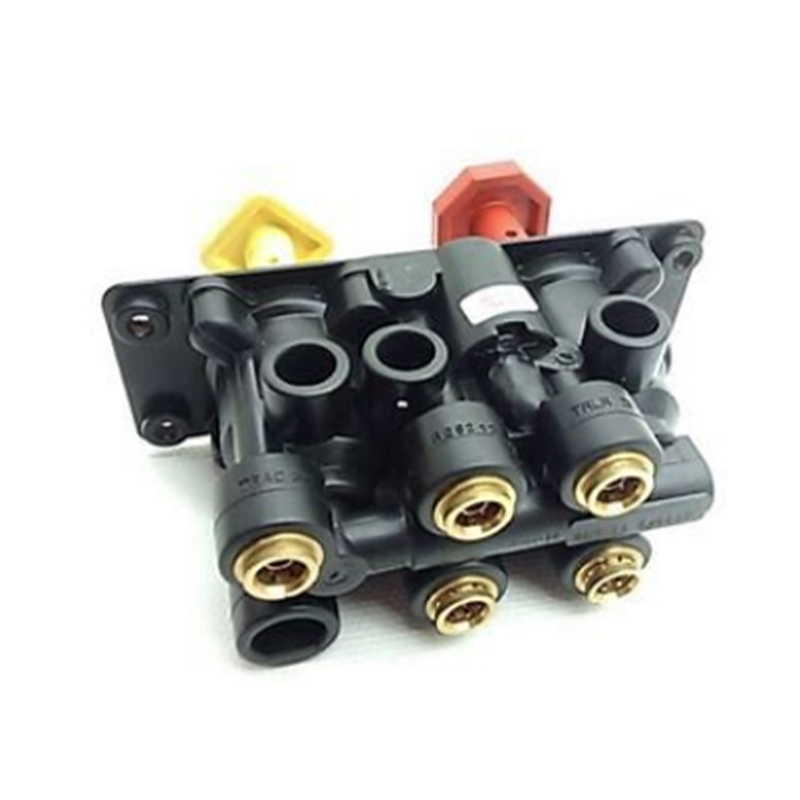

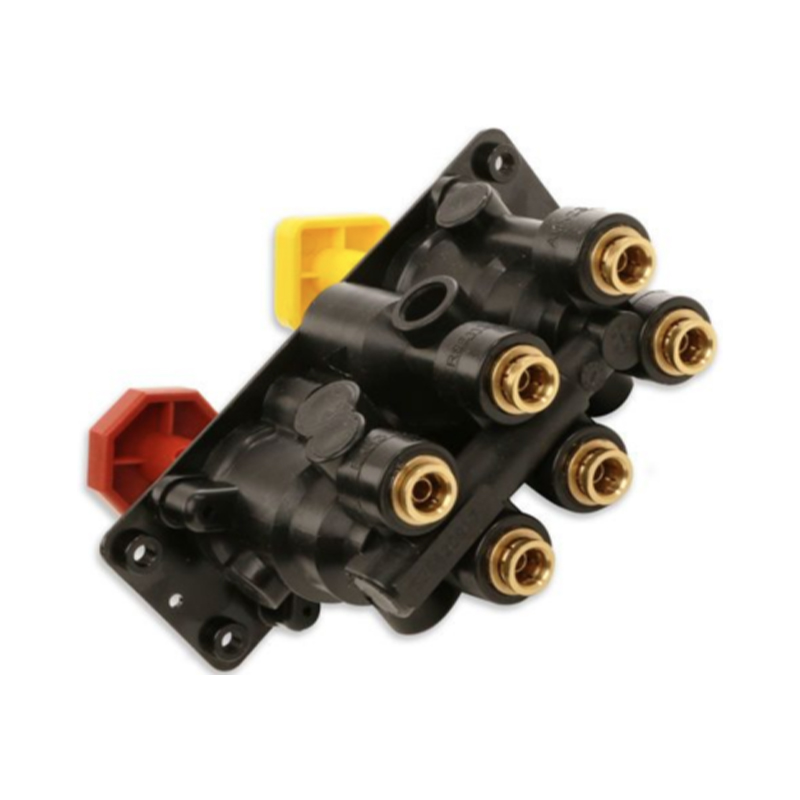

American PP-Dc&Mv3 Dashboard Push-Pull Control Valves

Zhejiang Gongzheng Machinery Co., Ltd. is a professional manufacturer of pneumatic control valves for American commercial vehicles, specializing in the PP-Dc (push-pull dual-circuit) and MV-3 (multi-function integrated) series. These dashboard-mounted valves serve as the operator interface for parking brake application, emergency brake release, and trailer air supply control on heavy-duty trucks, tractors, and buses. We supply a complete range of single-function and integrated control modules designed to meet OEM specifications and aftermarket replacement requirements for Class 6–8 vehicles operating under FMVSS 121.

Our American PP-Dc&Mv3 manufacturer position is built on vertical integration: we produce valve bodies, piston assemblies, seals, and electrical components in-house, supported by a 30,000 m² factory and IATF 16949 quality management. Every valve is leak-tested and cycle-tested before shipment, with port configurations and label markings matched to the customer's vehicle platform.

Product Range: PP-Dc and MV-3 Series

We organize our offering into two core families, each available in multiple port layouts, knob styles, and electrical interface options:

Both series are offered in standard 12 V and 24 V electrical configurations, with push-pull, push-to-release, or toggle actuation. We also supply repair kits and maintenance sets for field service of existing MV-3 and PP-Dc installations.

Application Fit and System Integration

PP-Dc and MV-3 valves are installed in the cab dashboard and connected to the air brake system's supply, parking, and trailer control circuits. The PP-Dc dual-circuit design allows the driver to independently control the tractor parking brake and the trailer air supply, meeting the redundancy requirements of FMVSS 121. The MV-3 integrated module reduces panel space and simplifies pneumatic plumbing by combining multiple control functions into a single body.

We configure each valve based on the vehicle's air system architecture: number of trailer lines, presence of ABS/EBS, and desired dashboard layout. Our engineering team reviews the customer's circuit diagram and mounting envelope before finalizing port orientation, thread type (NPT or SAE), and knob labeling.

Critical Specifications and Quality Assurance

• Operating pressure range: 0–150 psi (0–10.3 bar)
• Temperature range: –40 °C to +85 °C
• Port sizes: 1/4" NPT, 3/8" NPT, or SAE O-ring boss
• Electrical rating: 12 V or 24 V DC, with optional indicator lamp circuit
• Cycle life: 200,000+ cycles at rated pressure
• Leakage: Internal and external leakage tested to <10 cm³/min at 100 psi

Each production lot undergoes 100% functional testing including actuation force measurement, flow verification, and seal integrity check. Our IATF 16949 certification covers the entire manufacturing process from raw material incoming inspection to final packaging.

Configuration Options and Customization

We support both standard catalog configurations and custom designs. Typical customization includes:

• Knob color, shape, and laser-engraved symbols or text
• Integrated LED illumination with specific voltage and brightness
• Port location and angle adjustments for tight dashboard layouts
• Combined PP-Dc and MV-3 functions in a single housing
• Special seal materials for aggressive environments (e.g., silicone for extreme cold)

For OEM projects, we work from 3D CAD models or physical samples to produce matching components. Our R&D team can complete rapid prototyping within two weeks for most modifications.

Installation, Maintenance, and Support

All valves are shipped with installation instructions and recommended torque values for mounting and port connections. We recommend using thread sealant rated for pneumatic systems and verifying electrical polarity before final connection. For field service, we offer complete repair kits containing seals, springs, and plunger assemblies, along with technical bulletins for common troubleshooting steps.

Our support team provides phone and email assistance for installation questions, and we can arrange on-site training for fleet maintenance departments upon request. Spare parts are stocked for all current production models, with typical lead times of 5–10 business days for standard kits.

Information We Use to Configure Your Solution

To prepare a precise quotation and engineering proposal, we require the following project data:

• Vehicle make, model, and year (or equivalent platform)
• Air system schematic showing valve placement and circuit functions
• Desired control functions (parking, trailer supply, auxiliary)
• Mounting hole pattern and dashboard thickness
• Electrical system voltage and connector type
• Required port thread standard (NPT, SAE, or BSP)
• Target operating temperature range and environmental exposure
• Annual volume and preferred packaging (bulk, kit, or retail box)

With this information, we select the appropriate series, port configuration, and electrical options, and provide dimensional drawings and performance data for your review before production.
