European Hand Brake Valve Manufacturers

Product Range and Positioning

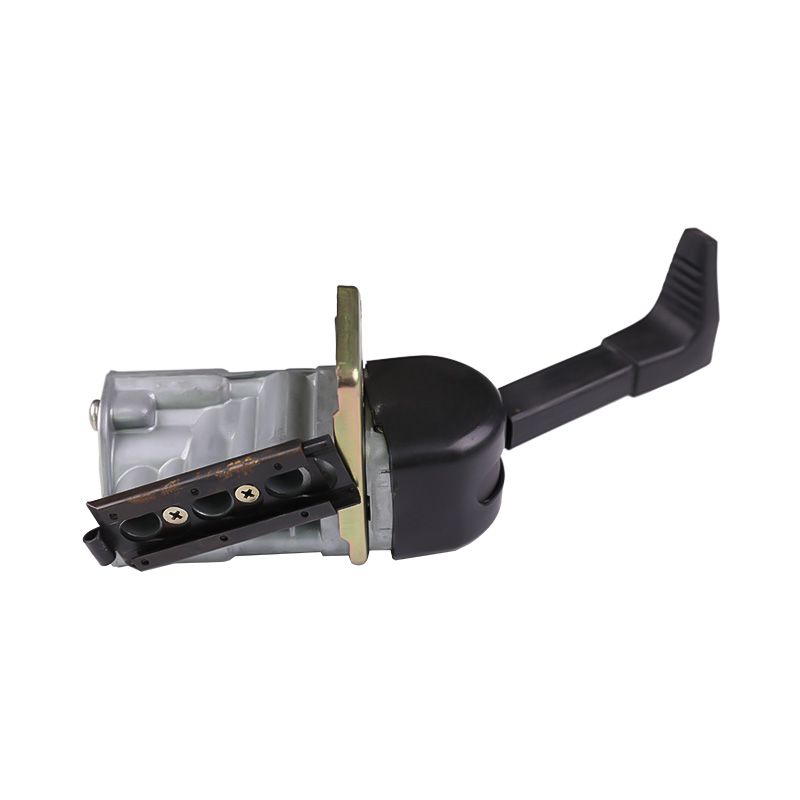

Our European Hand Brake Valve category contains over 40 distinct part numbers organized by interface type, mounting configuration, and electrical integration. We do not subdivide into child categories; instead, we offer the following functional variants directly:

Application Fit and Vehicle Compatibility

We manufacture hand brake valves that directly replace or upgrade original equipment on European truck and bus platforms. Our parts are designed for pneumatic systems operating at nominal 8.5 bar (125 psi) with supply ports ranging from M14x1.5 to VOSS DN10. The following table shows representative model coverage:

Configuration Options and Customization

We offer hand brake valves in several configuration dimensions:

• Port count: 3-port (supply, delivery, exhaust) or 4-port (with additional signal or trailer supply).
• Interface type: VOSS DN10, M14x1.5, M16x1.5, or push-in fast-connect fittings.
• Electrical integration: Without switch, with 24V normally open (NO) switch, or with 24V normally closed (NC) switch for parking brake warning.
• Mounting: Cab panel mount with M6 or M8 studs, bracket mount, or integrated lever assembly.
• Actuation: Hand lever, push-pull knob, or bat handle.
• Parking position: Standard 90° or 73° for specific Mercedes applications.

For OEM/ODM projects, we modify existing designs based on sample or specification. Our R&D team can adjust port orientation, lever length, switch type, and surface finish to match your vehicle interface. Over 70% of valve components are manufactured in-house, which allows us to control dimensional consistency and lead time.

Critical Specifications and Performance

Our European hand brake valves are designed to meet the following typical parameters:

• Operating pressure: 6.5 – 10 bar (95 – 145 psi).
• Flow capacity: Delivery flow up to 800 L/min at 8 bar depending on port size.
• Exhaust flow: ≥ 400 L/min at 8 bar for rapid release.
• Leakage: Internal leakage < 10 cm³/min at 8 bar; external leakage zero.
• Temperature range: -40°C to +80°C.
• Cycle life: ≥ 500,000 cycles without performance degradation.
• Corrosion resistance: Zinc-plated steel body or aluminum alloy with e-coat.

Quality Assurance and Compliance

Our manufacturing facility operates under IATF 16949 quality management system. Each hand brake valve undergoes 100% functional testing for actuation force, flow, leakage, and switch continuity before shipment. We also perform batch-level endurance testing and environmental chamber validation. Our products comply with ECE R13 for braking systems where applicable, and we maintain certificates from TÜV and other recognized bodies.

Installation, Maintenance, and Service

European hand brake valves are typically installed in the cab dashboard or center console. We provide installation torque specifications, port sealing recommendations, and wiring diagrams for electrical variants. Routine maintenance involves checking for air leaks, verifying switch function, and lubricating the lever pivot every 100,000 km or annually. We stock common spare parts including repair kits (seals, springs, plungers) for high-turnover models. Our warehouse maintains a standing inventory of over 200,000 units across all product lines, enabling rapid dispatch for urgent orders.

Information We Use to Configure Your Solution

To prepare a precise quotation and recommend the correct valve, we need the following project information:

• Vehicle make, model, and year.
• Original part number or reference (e.g., Knorr, Wabco, Haldex).
• Port type and size required (VOSS, M14, M16, push-in).
• Electrical requirement: with or without switch, NO or NC, voltage (12V or 24V).
• Mounting configuration and lever style preference.
• Annual volume and delivery schedule (for OEM/ODM pricing).
• Target market region and any specific certification requirements.

Submit these details through our inquiry form or contact our engineering team directly. We typically respond with a technical datasheet and commercial offer within 48 hours.
